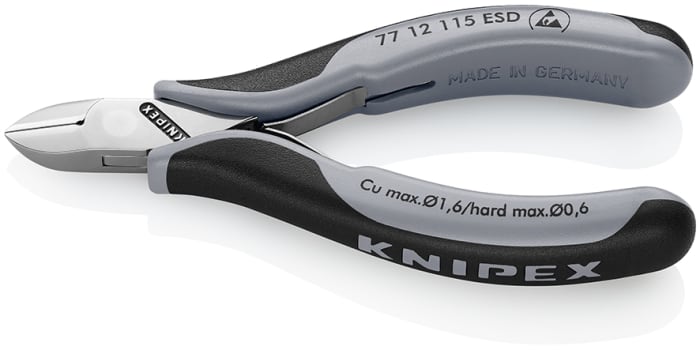

Knipex Knipex With Bevel ESD Safe Diagonal Cutter
Technical Document
Specifications
Brand
KnipexProduct Type
Side cutter
Sub Type
Diagonal Cutter
Non-Sparking
No
Overall Length
115mm
Jaw Width
11mm
Jaw Length
10mm
VDE/1000V Approved
No
Height Safe
No
Application
Electronic
ESD Safe
Yes
Jaw Material
High Grade Special Tool Steel
Handle Material
Bi-Metal
Grip Material
2 Component
Maximum Cutting Capacity
1.6mm
Standards/Approvals
DIN ISO 9654
Cut Type
With Bevel
Country of Origin
Germany
Product details
Knipex ESD side cutters
Side and diagonal cutter with inductive-hardened tips
Zero-play box joint
Special tool steel, oil-hardened
Soft, even closing and opening with captive, low-friction double spring
Electrically conductive handles, surface resistance >105, <1012 ohms, for controlled discharge of electrostatic energy
64 32 - Front diagonal cutter, Form 3 with small cutting edge, 120 mm, copper wire up to 1.5 mm
64 62 - Mini diagonal cutter, Form 3 with small cutting edge, angled 65°, 120 mm, copper wire up to 0.6 mm
77 02 - Side cutter, Form 1, small cutting edge, 115 mm, copper wire 0.3 - 1.6 mm, hard wire 0.5 mm
77 12 - Side cutter, Form 1, small cutting edge with wire grip, 115 mm, copper wire 0.3 → 1.6 mm, hard wire 0.5 mm
77 22 - Side cutter, Form 1, without cutting edge, 115 mm, nails up to 1.0 mm, soft wire up to 1.3 mm
77 32 - Side cutter, Form 2, small cutting edge, pointed head, 115 mm, copper wire 0.3 → 1.3 mm, hard wire 0.5 mm
77 42 - Side cutter, Form 2, without cutting edge, flat pointed head, 115 mm, copper wire 0.3 → 1.3 mm, hard wire 1 mm
77 52 - Side cutter, Form 2, small cutting edge, flat pointed head, 115 mm, copper wire 0.3 → 1 mm, hard wire 0.5 mm
77 72 - Side cutter, Form 2, small cutting edge, flat pointed head, 115 mm, copper wire 0.3 → 0.8 mm
Stock information temporarily unavailable.
AED 288.10
AED 288.10 Each (ex VAT)
AED 302.50
AED 302.50 Each (inc. VAT)
1
AED 288.10
AED 288.10 Each (ex VAT)
AED 302.50
AED 302.50 Each (inc. VAT)
Stock information temporarily unavailable.
1
