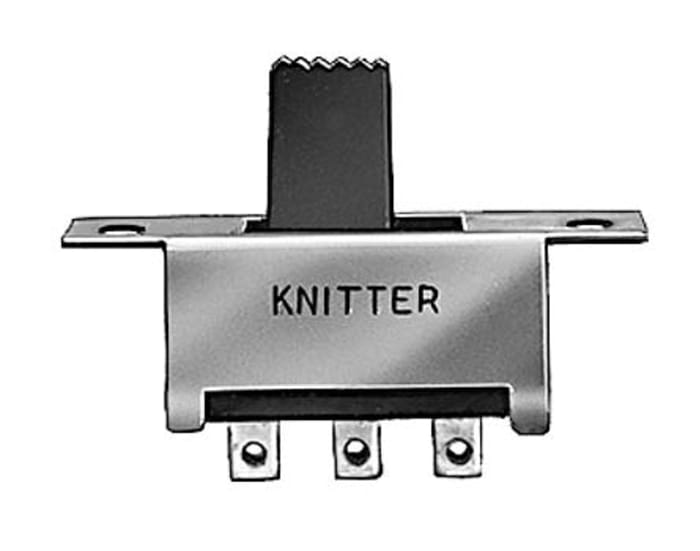

KNITTER-SWITCH Panel Slide Switch SPST Latching 350mA Copper
Technical Document
Specifications
Brand
KNITTER-SWITCHProduct Type
Slide Switch
Contact Configuration
SPST
Mount Type
Panel
Switch Operation
Latching
Switch Contact Current
350mA
Terminal Type
Lug Terminal
Illuminated
No
Contact DC Voltage
30V dc
Switch Configuration
On-On
Length
23mm
Depth
14.2mm
Standards/Approvals
RoHS
Width
14.2mm
Series
MFS
Mechanical Life
10000Cycles
Actuator Material
Copper
Maximum Operating Temperature
-20°C
Minimum Operating Temperature
85°C
Country of Origin
Japan
Product details
Knitter-Switch miniature Slide switches MFS Series
Product Description
Knitter MFS Miniature slide switches offer a compact design. These switches are available in shorting and non- shorting variations. The MFS range has a mechanical life of 10000 operations and boasts silver plated contacts.
Features and benefits:
10000 operations.
Silver plated contacts.
For Non-shorting 9139040, 9139043.
For shorting 9139047.
Stock information temporarily unavailable.
AED 87.20
AED 17.441 Each (In a Bag of 5) (ex VAT)
AED 91.56
AED 18.313 Each (In a Bag of 5) (inc. VAT)
5
AED 87.20
AED 17.441 Each (In a Bag of 5) (ex VAT)
AED 91.56
AED 18.313 Each (In a Bag of 5) (inc. VAT)
Stock information temporarily unavailable.
5
| Quantity | Unit price | Per Bag |
|---|---|---|
| 5 - 20 | AED 17.441 | AED 87.20 |
| 25 - 45 | AED 16.318 | AED 81.59 |
| 50 - 120 | AED 15.729 | AED 78.64 |
| 125 - 245 | AED 12.947 | AED 64.74 |
| 250+ | AED 11.93 | AED 59.65 |
