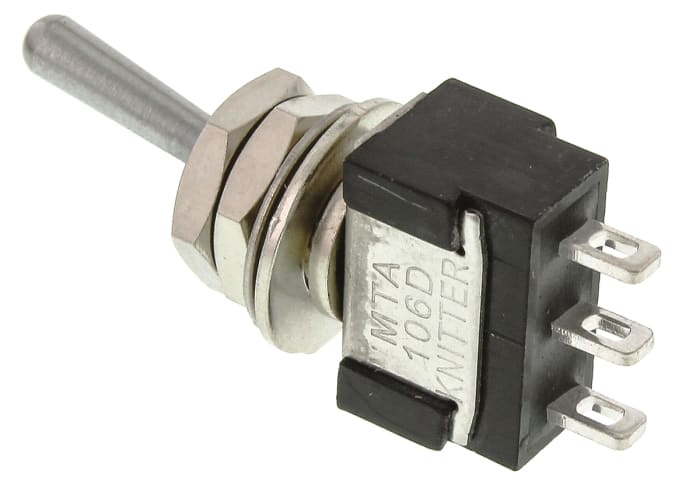

KNITTER-SWITCH Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 30 V dc, 250 V ac
Technical Document
Specifications
Brand
KNITTER-SWITCHProduct Type
Toggle Switch
Contact Configuration
SPDT
Switch Operation
On-On
Switch Contact Current
4A
Mount Type
Panel
Terminal Type
Solder
Illuminated
No
Panel Cutout Size
6.2 mm
Actuator Length
10.5mm
Minimum Operating Temperature
-45°C
Contact DC Voltage
30V dc
Contact AC Voltage
250V ac
Actuator Material
Copper
Maximum Operating Temperature
140°C
Switch Configuration
On-On
Height
32.5mm
Length
13mm
Standards/Approvals
RoHS, UL
Width
8mm
Series
MTA
Mechanical Life
200000Cycles
Country of Origin
China
Product details
Single Pole, Type MTA / STA
Miniature panel mount toggle switches
Copper alloy, silver plated solder tags
M6 x 0.75 bushing with locking plate, key 9 mm
Insulation resistance: > 1000 MΩ at 500 Vdc
Dielectric strength: 1500 V, 50 Hz for 1 minute
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 36.92
AED 36.92 Each (ex VAT)
AED 38.77
AED 38.77 Each (inc. VAT)
1
AED 36.92
AED 36.92 Each (ex VAT)
AED 38.77
AED 38.77 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 14 | AED 36.92 |
| 15 - 49 | AED 36.59 |
| 50 - 99 | AED 32.58 |
| 100 - 249 | AED 31.14 |
| 250+ | AED 28.94 |
