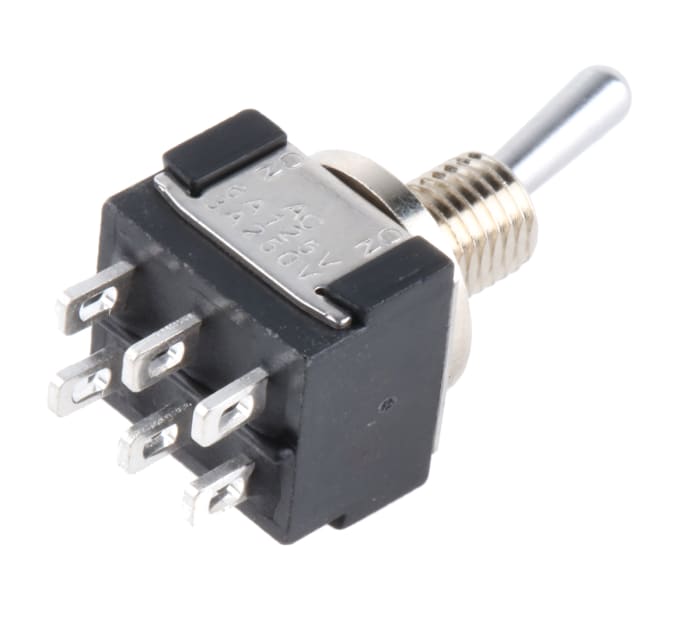

KNITTER-SWITCH Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 30 V dc, 250 V ac
Technical Document
Specifications
Brand
KNITTER-SWITCHProduct Type
Toggle Switch
Contact Configuration
DPDT
Switch Operation
On-On
Switch Contact Current
4A
Mount Type
Panel
Terminal Type
Solder
IP Rating
IP67
Illuminated
No
Panel Cutout Size
6.1 x 5.5 mm
Actuator Length
10.5mm
Minimum Operating Temperature
-45°C
Contact DC Voltage
30V dc
Contact AC Voltage
250V ac
Actuator Material
Chrome Plated
Maximum Operating Temperature
140°C
Switch Configuration
On-On
Height
32.5mm
Length
13mm
Standards/Approvals
RoHS, UL
Width
13mm
Series
MTE
Mechanical Life
100000Operations
Country of Origin
China
Product details
MTE Series - Waterproof IP67
2 and 3 position, single, double and triple pole panel mount toggle switches
Chromium-plated actuator
Solder tags; copper alloy silver plated
Silver plated contacts
Max. panel thickness; 1.5mm
Approvals
UL
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 74.90
AED 74.90 Each (ex VAT)
AED 78.64
AED 78.64 Each (inc. VAT)
1
AED 74.90
AED 74.90 Each (ex VAT)
AED 78.64
AED 78.64 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | AED 74.90 |
| 25 - 49 | AED 64.25 |
| 50 - 99 | AED 57.14 |
| 100 - 249 | AED 56.82 |
| 250+ | AED 56.39 |
