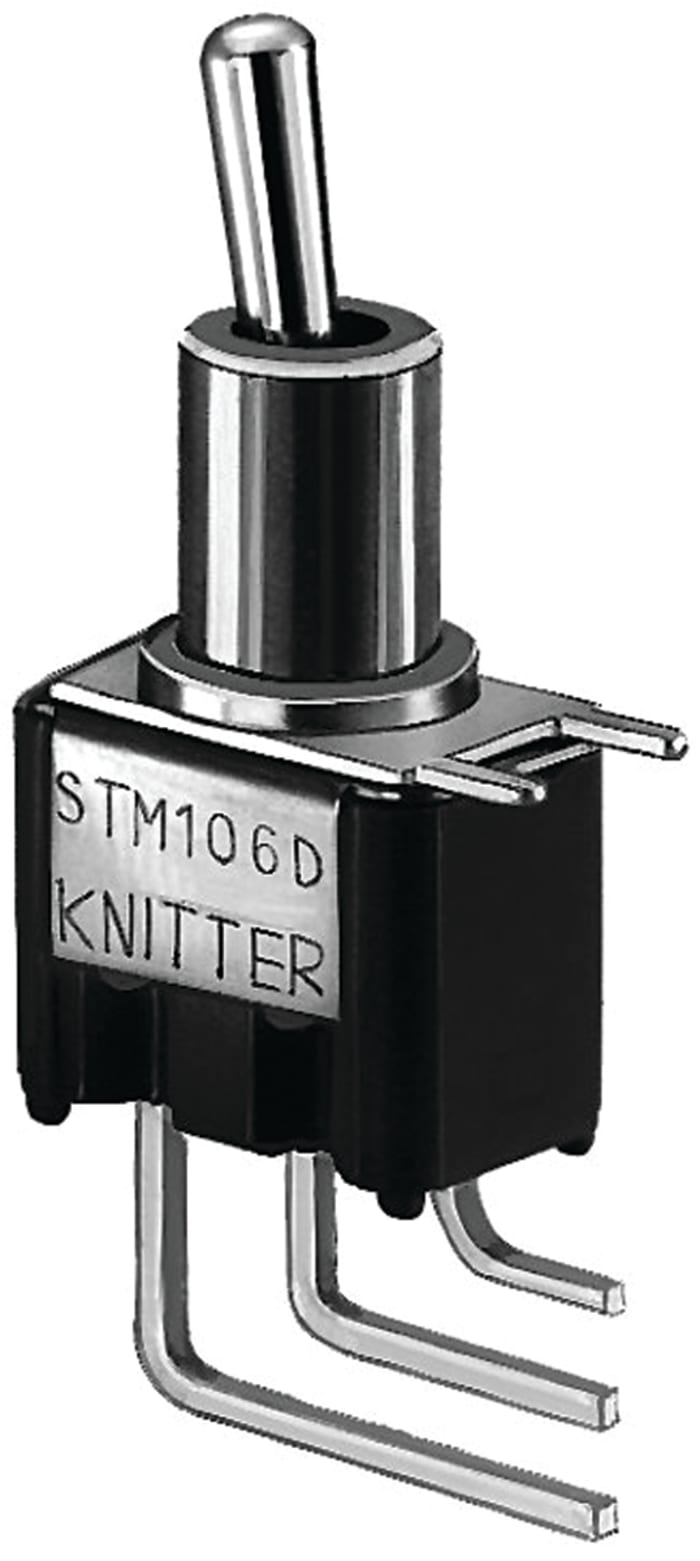

KNITTER-SWITCH Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal

RS Stock No.: 819-9224Brand: KNITTER-SWITCHManufacturers Part No.: STM 106 D-VM
brand-logo
View all in Toggle Switches

Technical Document

Specifications

Brand

KNITTER-SWITCH

Contact Configuration

SPDT

Switch Operation

On-On

Contact Current Rating

4 A@ 30 V dc

Mounting Type

PCB

Terminal Type

Through Hole

Actuator Length

6.8mm

Contact Material

Silver Plated Copper Alloy

Contact Resistance

<0.01Ω

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+80°C

Operating Temperature Range

-20 → +80°C

Mechanical Life

100000Operations

Country of Origin

Japan

Product details

Knitter Switch Miniature Toggle Switches - STM Series

Biased and non biased options
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case"
