LEMO Circular Connector, 4 Contacts, Panel Mount, 11.6 mm Connector, Socket, Female, IP50, 0S Series
Technical Document
Specifications
Brand
LemoNumber of Contacts
4
Product Type
Circular Connector
Mount Type
Panel Mount
Connector Size
11.6 mm
Current
7A
Plug/Socket
Socket
Contact Gender
Female
IP Rating
IP50
Series
0S
Orientation
Right Angle
Voltage
1200 V
Mating Type
Push Pull
Shell Size
0
Minimum Operating Temperature
-55°C
Termination Type
Solder
Maximum Operating Temperature
250°C
Housing Material
Brass
Pole Format
4
Standards/Approvals
No
Contact Plating
Gold over Nickel
Contact Material
Beryllium Alloy
Country of Origin
Switzerland
Product details

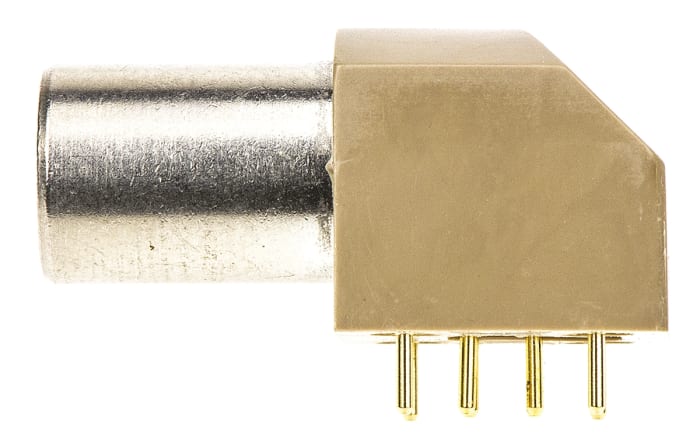

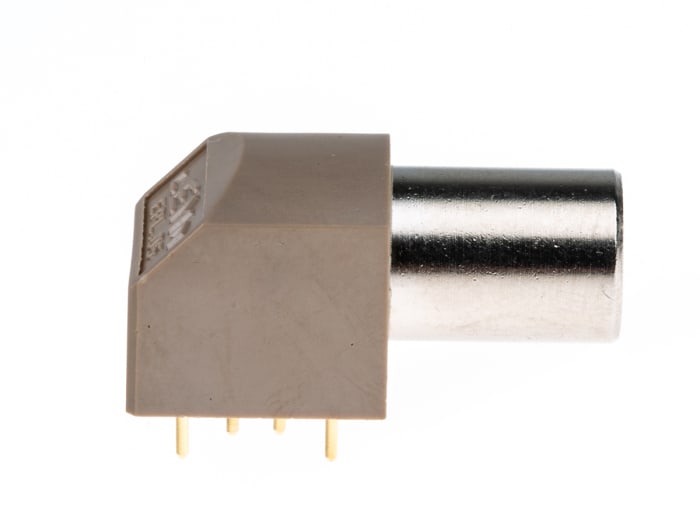

Elbow headers for S series PCBs
Elbow headers (90°) for fitting onto PCBs.
PCB installation and drilling plan supplied with every product.
S series cylindrical connectors
