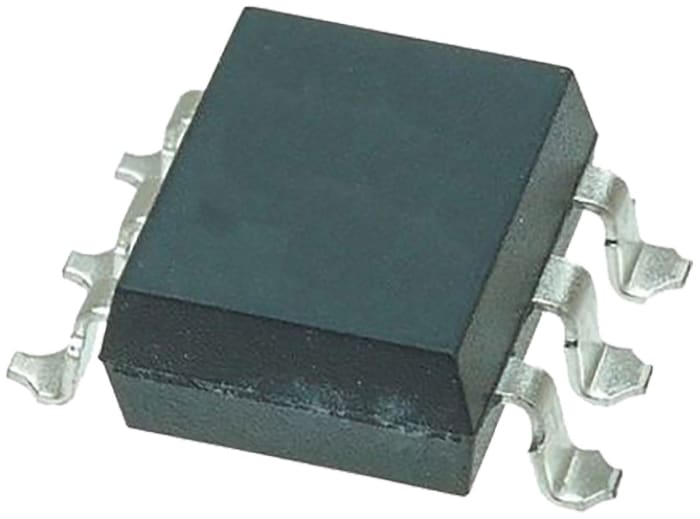

Lite-On CNY17-3S DC Input Optocoupler, Surface Mount, 6-Pin PDIP
Technical Document
Specifications
Brand
Lite-OnProduct Type
Optocoupler
Mount Type
Surface Mount
Maximum Forward Voltage
1.65V
Packaging
Tape & Reel
Number of Channels
1
Number of Pins
6
Package Type
PDIP
Input Current Type
DC
Typical Rise Time
5μs
Maximum Input Current
60mA
Isolation Voltage
5000Vrms
Minimum Operating Temperature
-55°C
Maximum Current Transfer Ratio
320%
Maximum Operating Temperature
100°C
Minimum Current Transfer Ratio
40%
Typical Fall Time
5μs
Standards/Approvals
FIMKO, UL, DEMKO, VDE, SEMKO, NEMKO
Series
CNY17
Automotive Standard
No
Country of Origin
Thailand
Product details
CNY17/4N25/4N35 Series Optocouplers
A range of single channel optocouplers from Lite-On with photo-transistor outputs. These 6-pin devices allow access to the photo-transistor base and are available with a range of minimum current transfer ratios from 20% up to 160%. The range includes both through-hole and surface-mounting package options.
Isolation voltage:
4N26 & 4N36 series 1.5 kV
4N25 series 2.5 kV
4N35 series 3.55 kV
CNY-17 series 5 kV
Optocouplers, Lite-On
Stock information temporarily unavailable.
AED 59.12
AED 0.91 Each (In a Tube of 65) (ex VAT)
AED 62.08
AED 0.955 Each (In a Tube of 65) (inc. VAT)
65
AED 59.12
AED 0.91 Each (In a Tube of 65) (ex VAT)
AED 62.08
AED 0.955 Each (In a Tube of 65) (inc. VAT)
Stock information temporarily unavailable.
65
| Quantity | Unit price | Per Tube |
|---|---|---|
| 65 - 455 | AED 0.91 | AED 59.12 |
| 520 - 975 | AED 0.856 | AED 55.64 |
| 1040 - 2470 | AED 0.802 | AED 52.16 |
| 2535 - 4940 | AED 0.749 | AED 48.68 |
| 5005+ | AED 0.749 | AED 48.68 |
