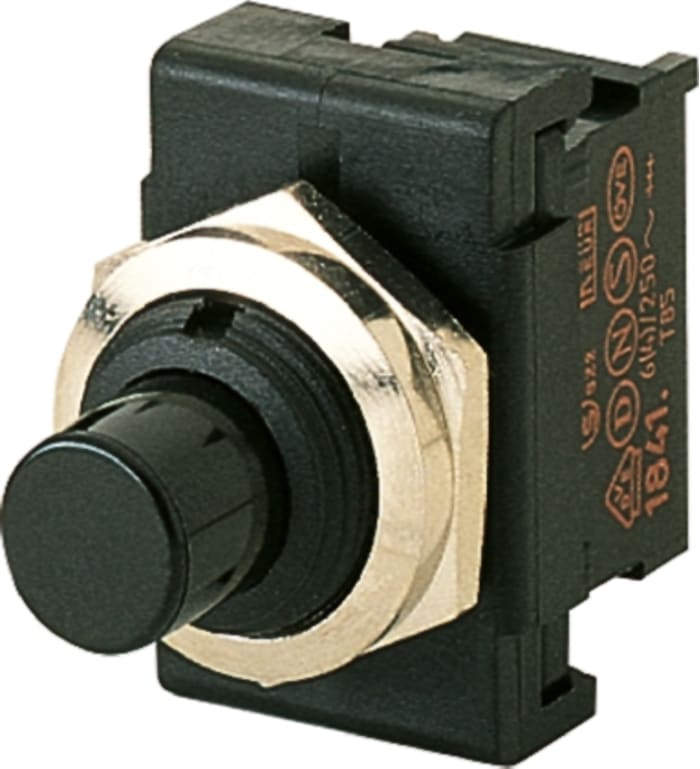

Marquardt Push Button Switch, Momentary, Panel, SPST, IP40 250 V ac

RS Stock No.: 741-0785Brand: MarquardtManufacturers Part No.: 1841.1301Distrelec Article No.: 13503723
brand-logo
View all in Push Button Switches

Technical Document

Specifications

Brand

Marquardt

Product Type

Push Button Switch

Actuator Colour

Black

Switch Operation

Momentary

Illuminated

No

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Tab

IP Rating

IP40

Minimum Operating Temperature

5°C

Contact AC Voltage

250V ac

Actuator Style

Button

Maximum Operating Temperature

120°C

Switch Configuration

On-Off

Standards/Approvals

UL, CSA

Switch Contact Current

6A

Country of Origin

Tunisia

Product details

Marquardt 1840 Series Push Button Switches

Marquardt 1840 series single pole push button switches are suitable for use in Class II appliances. The 1840 series of push button switches have silver contacts with SPNC, SPNO, SPST and SPDT switching formats which have high switching capabilities of up to 6A. These Marquardt 1840 push button switches feature 4.8mm Faston/Quick Connect style terminals.

M12x0.75 threaded bush
Contact distance ≥3mm
UL 94 V-2 flammability
Mechanical life 100,000 operations

Approvals

UL; CSA; ENEC

Marquardt Push Button Switches

View all in Push Button Switches

Stock information temporarily unavailable.

AED 34.45

AED 34.45 Each (ex VAT)

AED 36.17

AED 36.17 Each (inc. VAT)

Marquardt Push Button Switch, Momentary, Panel, SPST, IP40 250 V ac

1

Available in multiples of 1
1AED 34.45
2AED 68.91
3AED 103.36
4AED 137.82
5AED 172.27
6AED 206.72
7AED 241.18
8AED 275.63
9AED 310.09
10AED 331.16
11AED 364.28
12AED 397.40
13AED 430.51
14AED 463.63
15AED 496.75

AED 34.45

AED 34.45 Each (ex VAT)

AED 36.17

AED 36.17 Each (inc. VAT)

Marquardt Push Button Switch, Momentary, Panel, SPST, IP40 250 V ac

Stock information temporarily unavailable.

1

Available in multiples of 1
1AED 34.45
2AED 68.91
3AED 103.36
4AED 137.82
5AED 172.27
6AED 206.72
7AED 241.18
8AED 275.63
9AED 310.09
10AED 331.16
11AED 364.28
12AED 397.40
13AED 430.51
14AED 463.63
15AED 496.75

QuantityUnit price
1 - 9AED 34.45
10 - 24AED 33.12
25 - 49AED 31.94
50+AED 30.82

Technical Document

Specifications

Brand

Marquardt

Product Type

Push Button Switch

Actuator Colour

Black

Switch Operation

Momentary

Illuminated

No

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Tab

IP Rating

IP40

Minimum Operating Temperature

5°C

Contact AC Voltage

250V ac

Actuator Style

Button

Maximum Operating Temperature

120°C

Switch Configuration

On-Off

Standards/Approvals

UL, CSA

Switch Contact Current

6A

Country of Origin

Tunisia

Product details

Marquardt 1840 Series Push Button Switches

Marquardt 1840 series single pole push button switches are suitable for use in Class II appliances. The 1840 series of push button switches have silver contacts with SPNC, SPNO, SPST and SPDT switching formats which have high switching capabilities of up to 6A. These Marquardt 1840 push button switches feature 4.8mm Faston/Quick Connect style terminals.

M12x0.75 threaded bush
Contact distance ≥3mm
UL 94 V-2 flammability
Mechanical life 100,000 operations

Approvals

UL; CSA; ENEC

Marquardt Push Button Switches
