Technical Documents
Specifications
Brand
Maxim IntegratedLogic Family
CMOS/TTL
Product Type
Line Transceiver
Logic Function
Converter, Driver, Line Driver, Receiver
IC Type
Line Transceiver IC
Input Type
Single Ended
Output Type
CMOS
Polarity
Inverting
Mount Type
Surface
Package Type
TSSOP
Minimum Supply Voltage
-0.3V
Pin Count
16
Maximum High Level Output Current
60mA
Maximum Supply Voltage
5.5V
Maximum Low Level Output Current
10mA
Maximum Propagation Delay Time @ CL
2μs
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Height
1.1mm
Length
5.1mm
Standards/Approvals
No
Series
MAX202
Supply Current
15mA
Automotive Standard
No
Product Details

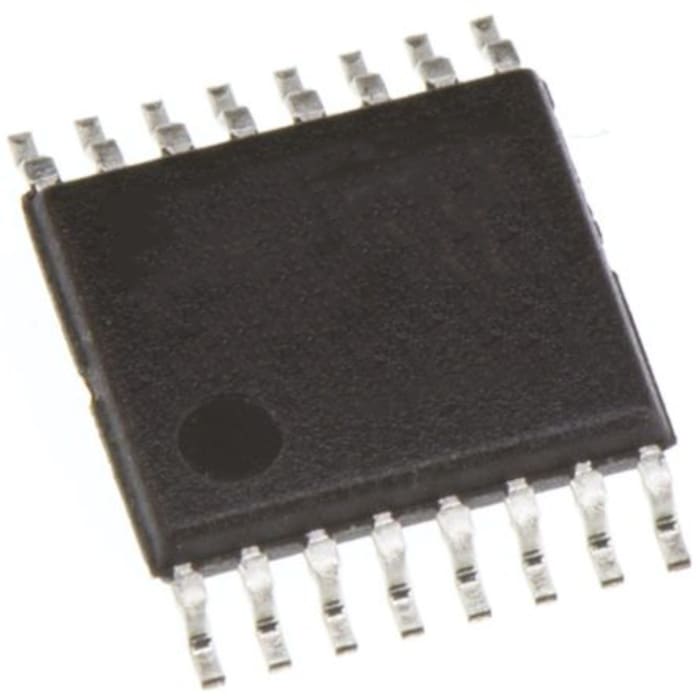

The MAX202E-MAX213E, MAX232E, and MAX241E are a family of transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation.
The MAX211E/MAX213E/MAX241E are available in 28-pin SO and SSOP packages. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external charge-pump capacitors.
Stock information temporarily unavailable.
AED 1,669.20
AED 17.388 Each (In a Tube of 96) (ex VAT)
AED 1,752.66
AED 18.257 Each (In a Tube of 96) (inc. VAT)
96
AED 1,669.20
AED 17.388 Each (In a Tube of 96) (ex VAT)
AED 1,752.66
AED 18.257 Each (In a Tube of 96) (inc. VAT)
Stock information temporarily unavailable.
96
