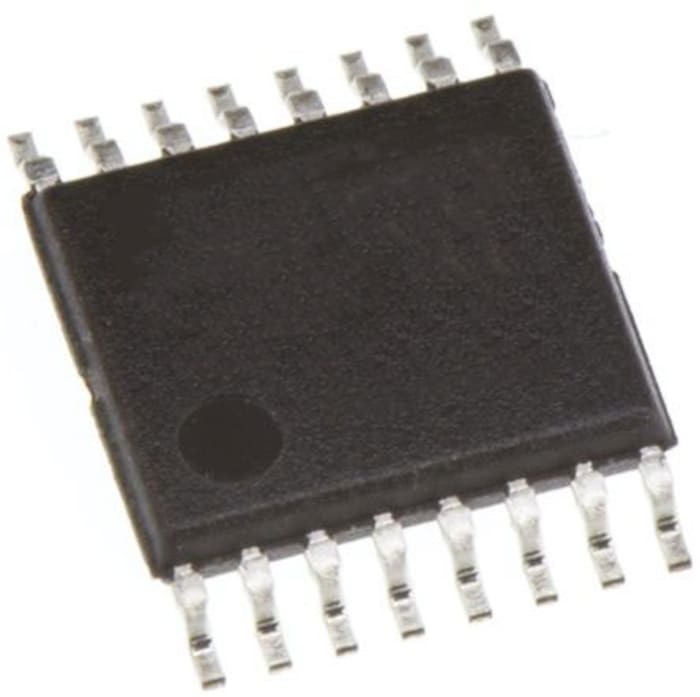

Maxim Integrated Line Transceiver, BiCMOS, Inverting, 16-Pin TSSOP

RS Stock No.: 191-3260Brand: Maxim IntegratedManufacturers Part No.: MAX3221CUE+T
brand-logo
View all in Line Interface ICs

Technical Document

Specifications

Brand

Maxim Integrated

Logic Family

CMOS/TTL

Product Type

Line Transceiver

Logic Function

Converter, Driver, Line Driver

IC Type

Line Transceiver IC

Input Type

Single Ended

Output Type

BiCMOS

Polarity

Inverting

Mount Type

Surface

Package Type

TSSOP

Minimum Supply Voltage

3V

Pin Count

16

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

60mA

Maximum Low Level Output Current

35mA

Maximum Propagation Delay Time @ CL

0.3μs

Minimum Operating Temperature

0°C

Maximum Operating Temperature

70°C

Width

6.55 mm

Height

1.1mm

Length

5.1mm

Standards/Approvals

No

Series

MAX3221

Supply Current

1μA

Automotive Standard

No
