Mean Well Embedded Switch Mode Power Supply SMPS, SP-150-24, 24V dc, 6.3A, 151W, 1 Output, 120 → 370 V dc, 85

RS Stock No.: 414-020Brand: Mean WellManufacturers Part No.: SP-150-24
brand-logo
View all in Switching Power Supplies

Technical Document

Specifications

Brand

Mean Well

Output Voltage

24V dc

Output Current

6.3A

Power Rating

151W

Number of Outputs

1

Input Voltage

120 → 370 V dc, 85 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

199mm

Width

99mm

Depth

50mm

Efficiency

83%

Minimum Temperature

-10°C

Weight

760g

Maximum Temperature

+60°C

Product details

SP-150 Series Single Output Power Supply With PFC Function

High efficiency, long life and high reliability
Built-in constant current limiting circuit, suitable for battery charging
Easy installation - screw terminals
Adjustable output voltage (-5% to +10%)
Power on LED indicator
Power factor correction to EN 61000-3-2
EMC meets EN 55022 Class B
100% full load burn-in test
Short circuit, over-load, over-voltage and over-temperature protection

Approvals

TUV, CB, UL recognised component for Canada & US

Standards

EN 60950-1, UL 60950-1

You may be interested in

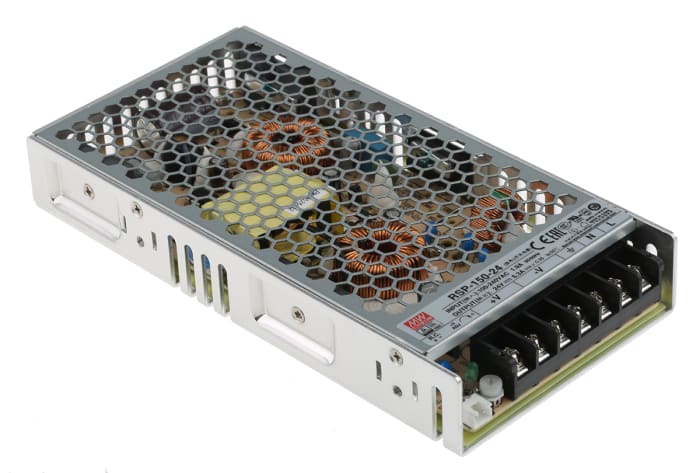

MEAN WELL, RSP-150-24, 6.3A
MEAN WELL, RSP-150-24, 6.3ABrand: MEAN WELL
AED 354.02Each (ex VAT)
View all in Switching Power Supplies

Stock information temporarily unavailable.

AED 339.51

AED 339.51 Each (ex VAT)

AED 356.49

AED 356.49 Each (inc. VAT)

Mean Well Embedded Switch Mode Power Supply SMPS, SP-150-24, 24V dc, 6.3A, 151W, 1 Output, 120 → 370 V dc, 85

1

Available in multiples of 1
1AED 339.51
2AED 679.02
3AED 1,018.53
4AED 1,358.04
5AED 1,683.91
6AED 2,020.70
7AED 2,357.48
8AED 2,694.26
9AED 3,031.04
10AED 3,336.80
11AED 3,670.47
12AED 4,004.15
13AED 4,337.83
14AED 4,671.51
15AED 5,005.19

AED 339.51

AED 339.51 Each (ex VAT)

AED 356.49

AED 356.49 Each (inc. VAT)

Mean Well Embedded Switch Mode Power Supply SMPS, SP-150-24, 24V dc, 6.3A, 151W, 1 Output, 120 → 370 V dc, 85

Stock information temporarily unavailable.

1

Available in multiples of 1
1AED 339.51
2AED 679.02
3AED 1,018.53
4AED 1,358.04
5AED 1,683.91
6AED 2,020.70
7AED 2,357.48
8AED 2,694.26
9AED 3,031.04
10AED 3,336.80
11AED 3,670.47
12AED 4,004.15
13AED 4,337.83
14AED 4,671.51
15AED 5,005.19

QuantityUnit price
1 - 4AED 339.51
5 - 9AED 336.78
10 - 24AED 333.68
25 - 49AED 330.47
50+AED 312.01
