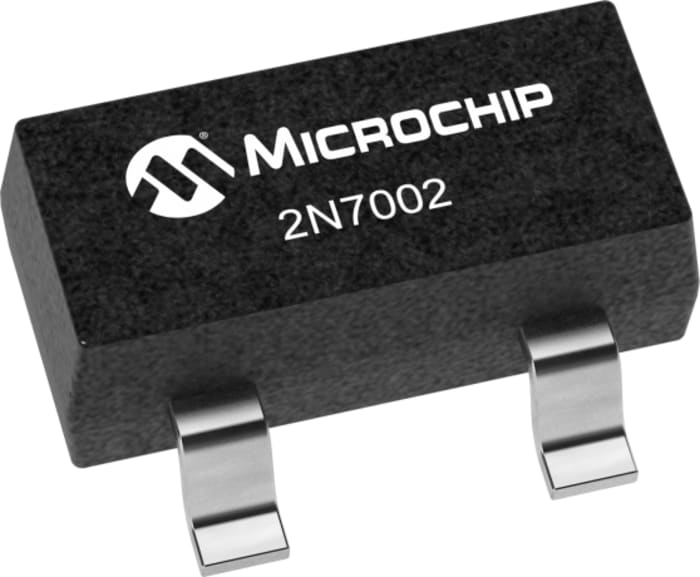

Microchip 2N7002 Type N-Channel Single MOSFETs, 115 mA, 60 V Enhancement, 3-Pin SOT-23 2N7002-G
Technical Document
Specifications
Brand
MicrochipProduct Type
Single MOSFETs
Channel Type
Type N
Maximum Continuous Drain Current Id
115mA
Maximum Drain Source Voltage Vds
60V
Package Type
SOT-23
Series
2N7002
Mount Type
Surface
Pin Count
3
Maximum Drain Source Resistance Rds
7.5Ω
Channel Mode
Enhancement
Maximum Power Dissipation Pd
0.36W
Maximum Gate Source Voltage Vgs
±30 V
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
30nC
Forward Voltage Vf
1.2V
Maximum Operating Temperature
150°C
Width
1.3 mm
Height
1.12mm
Length
2.9mm
Standards/Approvals
Lead (Pb)-free/RoHS
Automotive Standard
No
Country of Origin
Thailand
