Technical Documents
Specifications
Brand
MicrochipProduct Type
Touch Screen Sensor
Sub Type
Capacitive Touch Controller
Interface Type
I2C
Sensing Technology
Capacitive
Mount Type
Surface
Package Type
XQFN
Pin Count
56
Minimum Supply Voltage
3.3V
Maximum Supply Voltage
6.6V
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Length
6mm
Height
400μm
Standards/Approvals
UL/IEC 60730 Class B
Width
6mm
Series
maXTouch
Automotive Standard
No
Country of Origin
Taiwan, Province Of China
Product Details

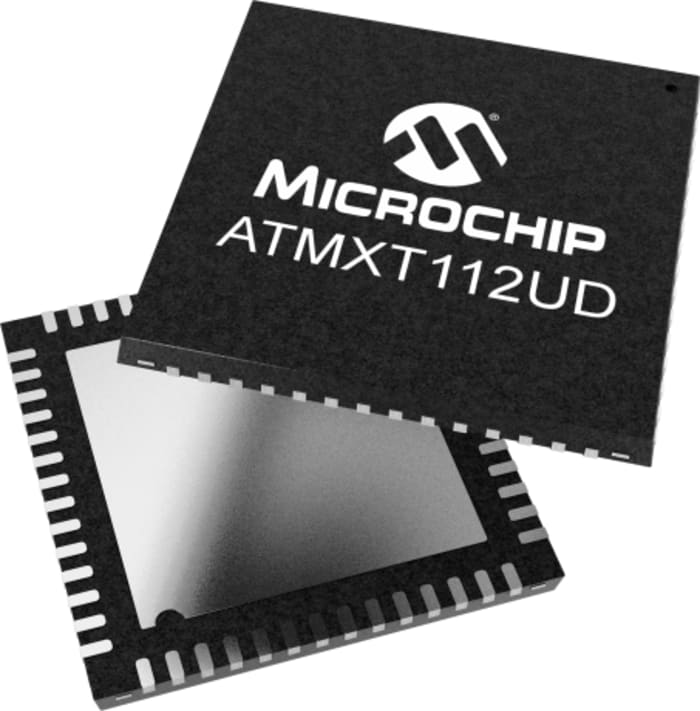

The Microchip Touchscreen controller is IEC/UL 60730 Class B certified and offers unique safety-related features that enable system shut off through an intuitive soft button on a touchscreen, removing the requirement for an external safety certified stop or cancel button and associated microcontroller (MCU). This IC allows an appliance to detect touchscreen related failures and shut down the appliance automatically through a variety of self-test capabilities.
Stock information temporarily unavailable.
AED 6,501.32
AED 13.268 Each (In a Tray of 490) (ex VAT)
AED 6,826.39
AED 13.931 Each (In a Tray of 490) (inc. VAT)
490
AED 6,501.32
AED 13.268 Each (In a Tray of 490) (ex VAT)
AED 6,826.39
AED 13.931 Each (In a Tray of 490) (inc. VAT)
Stock information temporarily unavailable.
490
