Technical Documents
Specifications
Brand
MicrochipProduct Type
Analogue to Digital Converter (ADC)
Architecture
Delta Sigma
Number of ADCs
6
Resolution
24 bit
Sampling Rate
4000kHz
Mount Type
Surface
Input Type
Single Ended
Package Type
SSOP
Pin Count
28
Minimum Operating Temperature
-40°C
Interface Type
SPI
Maximum Operating Temperature
125°C
Minimum Supply Voltage
2.7V
Length
10.5mm
Height
2mm
Standards/Approvals
RoHS
Series
MCP391
Maximum Supply Voltage
3.6V
Automotive Standard
No
Product Details

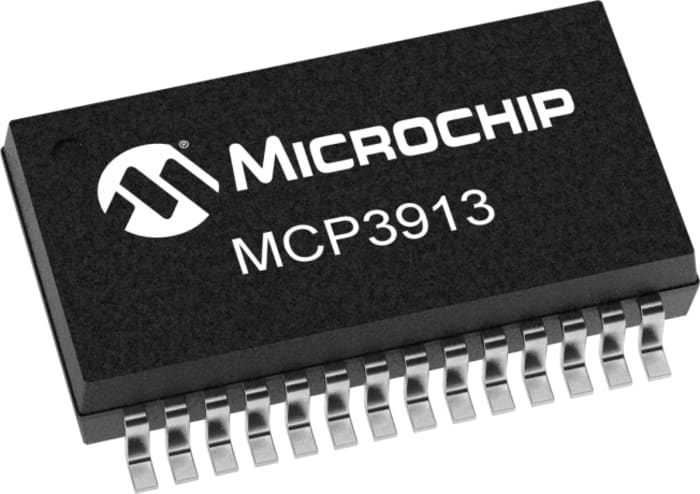

The Microchip MCP391x portfolio of Analog Front Ends feature performance and functionality which makes them appropriate for use in designs targeted to meet the following industry standards for smart metering applications IEC62053-11, IEC62053-21, IEC62053-22, ANSI C12.20. In such designs, the MCP391x portfolio can be paired with either MCUs/MPUs which are running a metrology engine, or standard (non-Metrology) MCUs/MPUs.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
AED 39,674.88
AED 18.893 Each (On a Reel of 2100) (ex VAT)
AED 41,658.62
AED 19.838 Each (On a Reel of 2100) (inc. VAT)
2100
AED 39,674.88
AED 18.893 Each (On a Reel of 2100) (ex VAT)
AED 41,658.62
AED 19.838 Each (On a Reel of 2100) (inc. VAT)
Stock information temporarily unavailable.
2100
