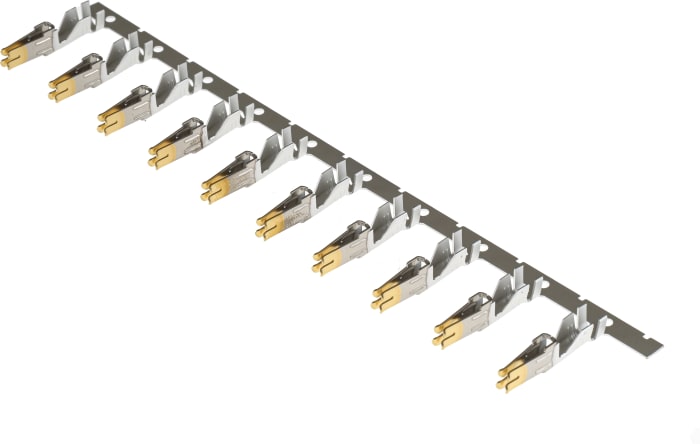

Molex Mini-Fit Sr Series Female Crimp Terminal, 8AWG Max
Technical Document
Specifications
Brand
MolexGender
Female
For Use With
Mini-Fit Sr Connector Housing
Series
Mini-Fit Sr
Termination Method
Crimp
Contact Plating
Gold
Contact Material
Copper Alloy
Maximum Wire Size AWG
8AWG
Series Number
42815
Maximum Contact Resistance
1mΩ
Maximum Current
50A
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+105°C
Product details
Molex Mini-Fit Sr. Crimp contacts - 42815 and 42817 Series
Male and female crimp terminals for use in Mini-Fit Sr. receptacle and plug housings able to support up to 50 A. These crimp terminals are available with a silver plating which is more cost effective than gold and also offers corrosion resistance and good conductive qualities. The receptacle terminals have a dual beam design with four points of contact for high contact reliability and long-term electrical performance. These crimp terminals also have a low insertion force
Features and Benefits
• Support up to 50 A
• Silver plating offers cost savings, corrosion resistance and high conductivity
• Dual beam design with four points of contact for high electrical reliability
• Low insertion force
Product Application Information
Mini-Fit Sr. power connectors are suitable for use in the industrial, consumer, automotive, telecommunications and medical industries. Applications include printers, power supplies, washers, dryers, motorcycles, commercial vehicles, servers and X-ray machines
Molex Minifit Sr.™ Series
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 109.20
AED 10.92 Each (In a Pack of 10) (ex VAT)
AED 114.66
AED 11.466 Each (In a Pack of 10) (inc. VAT)
10
AED 109.20
AED 10.92 Each (In a Pack of 10) (ex VAT)
AED 114.66
AED 11.466 Each (In a Pack of 10) (inc. VAT)
10
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 190 | AED 10.92 | AED 109.20 |
| 200 - 740 | AED 8.925 | AED 89.25 |
| 750 - 2990 | AED 8.032 | AED 80.32 |
| 3000 - 5990 | AED 7.14 | AED 71.40 |
| 6000+ | AED 6.93 | AED 69.30 |
