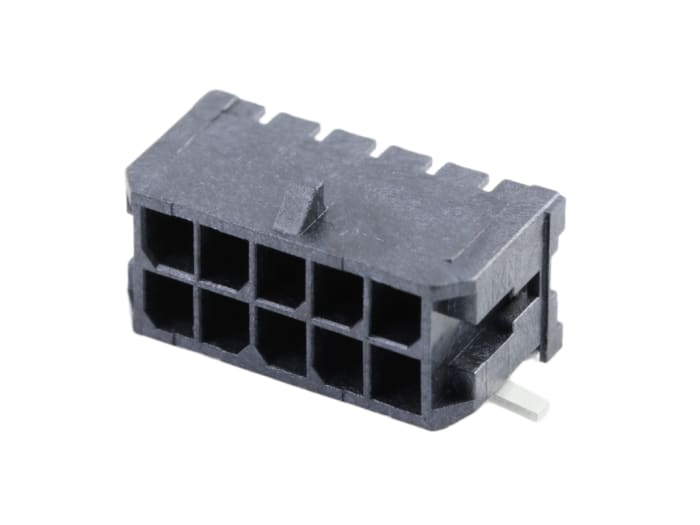

Molex 43045 Series Right Angle Surface Mount Header, 10 Contact(s), 3 mm Pitch, 2 Row, Shrouded

RS Stock No.: 693-467Brand: MolexManufacturers Part No.: 43045-1011
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Molex

Series

43045

Product Type

Header

Pitch

3mm

Current

8.5A

Number of Contacts

10

Housing Material

High Temperature Thermoplastic

Number of Rows

2

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mount Type

Surface Mount

Connector System

Wire-to-Board

Contact Material

Brass

Contact Plating

Gold

Minimum Operating Temperature

-40°C

Termination Type

Solder

Maximum Operating Temperature

125°C

Standards/Approvals

UL E29179, CSA LR19980

Country of Origin

China
