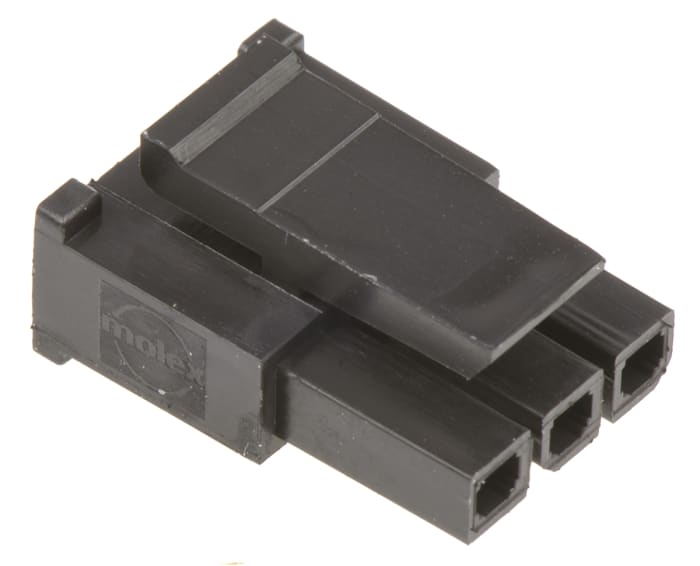

Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 3 Way, 1 Row
Technical Document
Specifications
Brand
MolexNumber Of Contacts
3
Number Of Rows
1
Pitch
3mm
Gender
Female
Mounting Type
Cable Mount
Series
MICRO-FIT 3.0
For Use With
Micro-Fit 3.0 Crimp Terminal 43030, Micro-Fit 3.0 Crimp Terminal 45773, Micro-Fit 3.0 Crimp Terminal 46235
Body Orientation
Straight
Length
9.85mm
Width
5.3mm
Housing Material
Nylon
Termination Method
Crimp
Product details
Molex Micro-Fit Connector Housings – Series 43645 & 43640
The 43645 and 43640 series from Molex feature 3.0 mm pitch connector housings, they form part of the compact Micro-Fit connector system. They are typically used for wire to wire or wire to board connections and are ideal for use in a number of applications including Automotive, Electronics, Medical, Communications and Telecommunications.
Features and Benefits
• 3.0 mm pitch
• Housings are black in colour
• Positive locking for a secure connection
• Polarisation to ensure accurate mating
• Panel mounting plugs fitted with ears, enabling them to be used in cable mounting applications
• Single Row
• UL 94V-0 flammability rating
Molex Micro-Fit 3.0 Series
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 10.56
AED 2.112 Each (In a Pack of 5) (ex VAT)
AED 11.09
AED 2.218 Each (In a Pack of 5) (inc. VAT)
Standard
5
AED 10.56
AED 2.112 Each (In a Pack of 5) (ex VAT)
AED 11.09
AED 2.218 Each (In a Pack of 5) (inc. VAT)
Standard
5
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 120 | AED 2.112 | AED 10.56 |
| 125 - 495 | AED 1.494 | AED 7.47 |
| 500 - 2495 | AED 1.442 | AED 7.21 |
| 2500 - 4995 | AED 1.288 | AED 6.44 |
| 5000+ | AED 1.288 | AED 6.44 |
