Technical Documents
Specifications
Brand
MPSProduct Type
Power Control Switch
Power Switch Type
Load Switch
Switch On Resistance RdsOn
38mΩ
Number of Outputs
1
Power Rating
1W
Number of Inputs
1
Mount Type
Surface
Minimum Supply Voltage
3V
Package Type
SOT-563
Pin Count
6
Maximum Supply Voltage
5.5V
Maximum Operating Temperature
125°C
Minimum Operating Temperature
-40°C
Length
1.6mm
Standards/Approvals
RoHS
Width
1.6mm
Series
MP5075
Country of Origin
China
Product Details

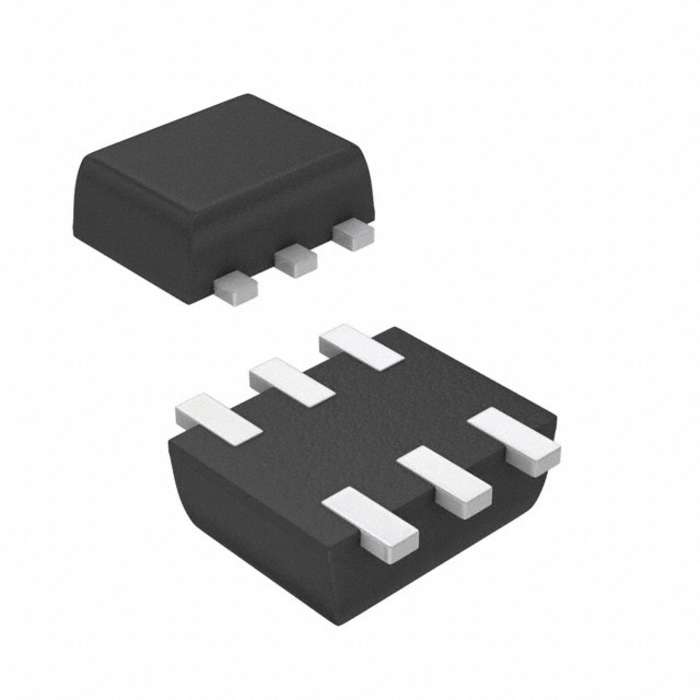

The MPS International Ltd Low RDS(ON) Load Switch provides up to 2.4A of load protection over a 3V to 5.5V voltage range with a small RDS(ON) in a space saving package. It is a very high efficiency and space saving solution for notebooks, tablets, and other portable and battery operated applications. With a fixed soft start function, it can prevent inrush current during circuit start up.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
AED 28.36
AED 2.836 Each (Supplied as a Tape) (ex VAT)
AED 29.78
AED 2.978 Each (Supplied as a Tape) (inc. VAT)
Standard
10
AED 28.36
AED 2.836 Each (Supplied as a Tape) (ex VAT)
AED 29.78
AED 2.978 Each (Supplied as a Tape) (inc. VAT)
Stock information temporarily unavailable.
Standard
10
| Quantity | Unit price | Per Tape |
|---|---|---|
| 10 - 90 | AED 2.836 | AED 28.36 |
| 100 - 240 | AED 2.728 | AED 27.28 |
| 250+ | AED 2.514 | AED 25.14 |
