Murata Power Solutions DMS-20LCD Series Digital Voltmeter DC, LCD Display 3-Digits Calibrated, 21.29 mm, 33.93 mm
Technical Document
Specifications
Product Type
Digital Voltmeter
Current Type
DC
Number of Digits
3
Display Type
LCD
Cutout Height
21.29mm
Cutout Width
33.93mm
Depth
17.2mm
Digit Height
0.37in
Calibrated
Yes
Minimum Operating Temperature
0°C
Maximum Operating Temperature
60°C
Standards/Approvals
RoHS
Series
DMS-20LCD
Minimum Measurement
±200 mV
Maximum Measurement
±200 V
Country of Origin
China
Product details
DMS-20LCD - Subminiature Digital Panel Voltmeters
The digital voltmeter DMS-20LCD series represent the ultimate combination of low price, low power, small size and high performance in digital meters.

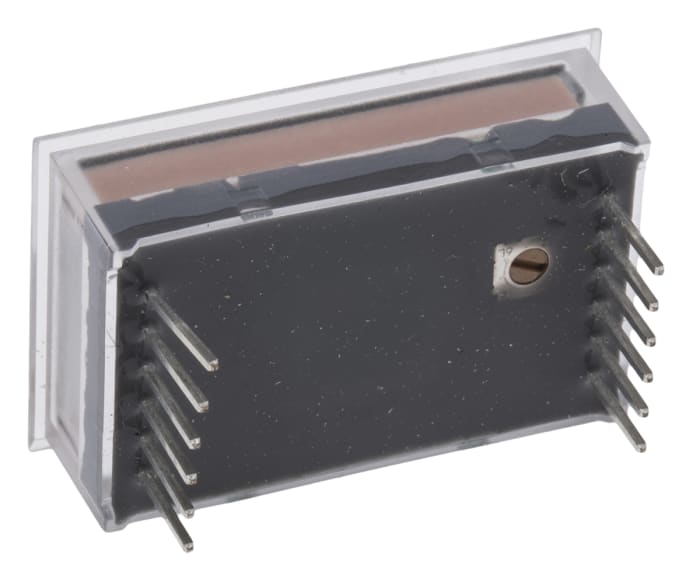

Epoxy encapsulated in a subminiature 12-pin DIP package, these completely self-contained, fully operational meters offer a combination of ruggedness, long-term reliability and component-like ease-of-use simply not available in any other meters.
Digital Voltmeters with 3.5 digit LCD display

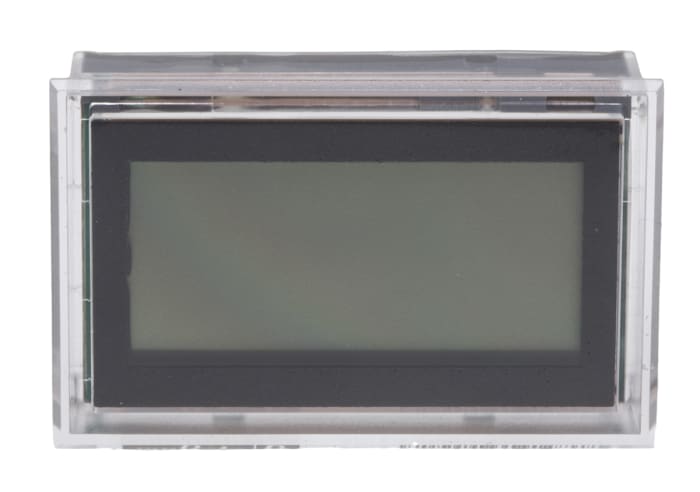

Large 9.4mm, enhanced-contrast LCD display
4 differential input voltage ranges
High accuracy, ±1 count (±0.05%)
User-selectable decimal point place
Single +5V supply or 9V battery
Lowest power, only 2mW
Low-battery annunciator
Epoxy-encapsulated, in a12-pin DIP package
Subminiature size with 35x22x11 mm
Panel or pc-board mountable
Murata Power Solutions Series
Stock information temporarily unavailable.
AED 227.05
AED 227.05 Each (ex VAT)
AED 238.40
AED 238.40 Each (inc. VAT)
1
AED 227.05
AED 227.05 Each (ex VAT)
AED 238.40
AED 238.40 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 227.05 |
| 5 - 9 | AED 217.96 |
| 10+ | AED 213.46 |
