OEP Through Hole Audio Transformer
Technical Document
Specifications
Brand
OEPProduct Type
Audio Transformer
Primary Impedance
600Ω
Primary DC Resistance
20.6Ω
Secondary DC Resistance
1143Ω
Mount Type
Through Hole
Termination Type
Pin
Minimum Operating Temperature
0°C
Maximum Operating Temperature
70°C
Width
22.9 mm
Depth
28mm
Length
27.94mm
Standards/Approvals
UL File number 218090, UL File no. E109088(M), UL File no. E143115, UL94V-0, UL File number:E69578(M), UL File no. E174837
Series
A262A3E
Isolation Voltage
1kV
Maximum Operating Frequency
25kHz
Minimum Operating Frequency
30Hz
Turns Ratio
1+1:6.45+6.45
Construction
Bobbin and Box material
Country of Origin
China
Product details

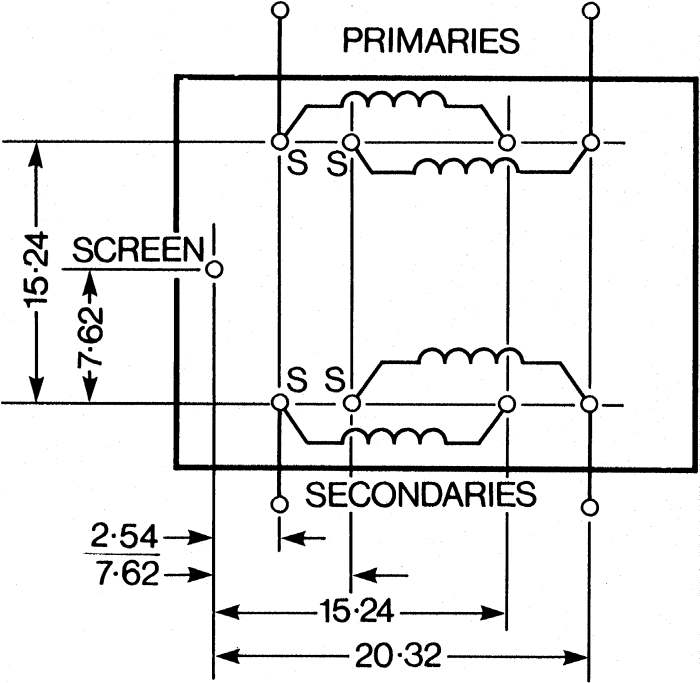

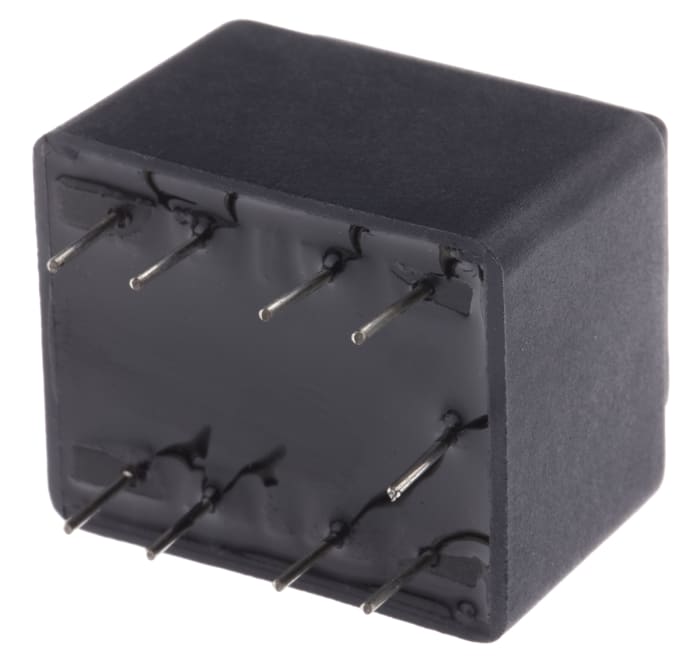

High Performance Encapsulated AF, PCB Mount
From OEP, a range of high performance, industry standard PCB mounting audio frequency transformers. The dual primary and secondary windings of these frequency transformers provide a wide range of impedance matching ratios to suit many input, interstage and output applications.
Features and Benefits:
• Industry standard 0•1in. grid spacing
• Resin encapsulated in glass filled nylon case
• Foil interwinding screen
• Optional Mu-metal, a nickel-iron alloy, screening can (stock no. 210-6469)
The OEP Audio Frequency Transformer range also includes:
• 210-6403 is a 3.75Ω, 6.3+6.3:1+1 PCB mount audio transformer
• 210-6419 is a 600Ω, 1+1:2+2 PCB mount audio transformer
• 210-6425 is a 600Ω, 1+1:6.45+6.45 PCB mount audio transformer
• 210-6431 is a 150Ω, 1+1:1+1 PCB mount audio transformer
• 210-6447 is a 600Ω, 1+1:1+1 PCB mount audio transformer
• 210-6469 is an optional Mu-metal, nickel-iron alloy screening can
