Technical Documents
Specifications
Brand

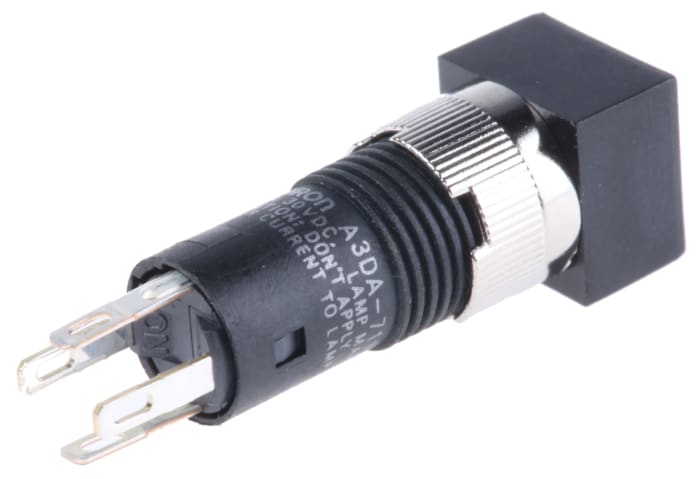

OmronProduct Type
Push Button Switch
Switch Operation
Momentary
Illuminated
Yes
Panel Cutout Size
8 mm
Series
A3d
Mount Type
Panel
Contact Configuration
SPST
Terminal Type
Solder
LED Colour
Green, Red, White, Yellow
IP Rating
IP40
Minimum Operating Temperature
-10°C
Contact DC Voltage
30V dc
Contact AC Voltage
24V ac
Actuator Style
Button
Maximum Operating Temperature
55°C
Switch Configuration
On-Off
Standards/Approvals
CSS, CE, UL
Switch Contact Current
100mA
Product Details
Switch & indicator lenses are not interchangeable
Indicator units and switch body's typically require a lens for completion, for lenses see typically stock no's 3664225 (indicator) and 3663991 (switch)
Stock information temporarily unavailable.
AED 72.87
AED 72.87 Each (ex VAT)
AED 76.51
AED 76.51 Each (inc. VAT)
1
AED 72.87
AED 72.87 Each (ex VAT)
AED 76.51
AED 76.51 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 72.87 |
| 5 - 9 | AED 71.85 |
| 10 - 24 | AED 70.73 |
| 25 - 49 | AED 68.05 |
| 50+ | AED 63.66 |
