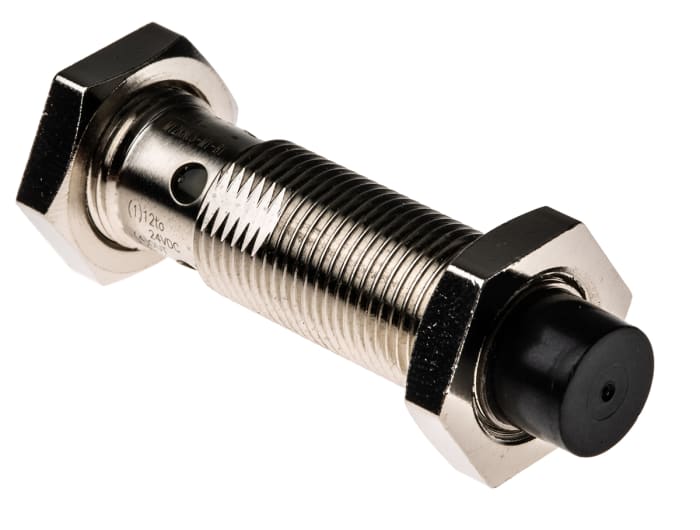

Omron Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, PNP Output, 12 → 24 V dc, IP67
Technical Document
Specifications
Brand
OmronSensor Technology
Inductive
Body Style
Barrel
Thread Size
M12 x 1
Output Type
PNP
Detection Range
8 mm
Terminal Type
4-Pin M12 Connector
IP Rating
IP67
Supply Voltage
12 → 24 V dc
Length
48mm
Maximum dc Voltage
32V
Mounting Type
Non-Flush
Switching Current
200 mA
Shielding
Unshielded
Maximum Switching Frequency
800Hz
Housing Material
Brass Nickel Plated
Maximum Operating Temperature
+70°C
Minimum Operating Temperature
-40°C
Reverse Polarity Protection
Yes
Short Circuit Overload Protection
Yes
Country of Origin
China
Product details
E2A Standard Length Brass
Features and benefits
PBTP sensing face material
LED indication
Exceeds CENELEC sensing range for greater sensitivity and mechanical protection
Standard range is a replacement to short body and E2EG range
Operating temperature range -40 → +70°C
Supply voltage 12 to 24Vdc
Load current 200mA maximum
Short circuit, surge suppression and reverse polarity protection
CENELEC range to EN60947-5-2
Applications
Sensing and instrumentation
Stock information temporarily unavailable.
Please check again later.
AED 265.95
Each (ex VAT)
AED 279.25
Each (inc. VAT)
1
AED 265.95
Each (ex VAT)
AED 279.25
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 2 | AED 265.95 |
| 3+ | AED 255.20 |
