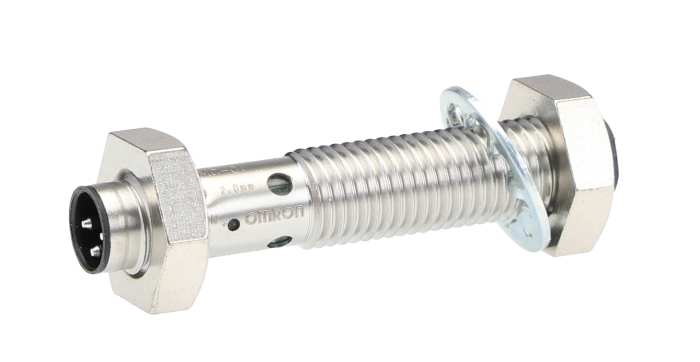

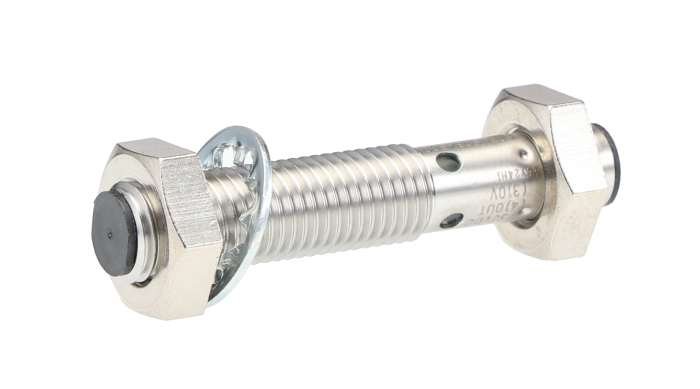

Omron E2B-S08KS02-MC-C1 Threaded Barrel Inductive Proximity Sensor, M8 x 1 NPN E2B 24V 2 mm 30 V dc 200mA

Name: Omron E2B-S08KS02-MC-C1 Threaded Barrel Inductive Proximity Sensor, M8 x 1 NPN E2B 24V 2 mm 30 V dc 200mA
Brand: Omron
SKU: 8055008
Availability: LimitedAvailability

RS Stock No.: 805-5008Brand: OmronManufacturers Part No.: E2B-S08KS02-MC-C1

View all in Proximity Sensors

Technical Documents

Specifications

Brand

Omron

Thread Size

M8 x 1

Product Type

Inductive Proximity Sensor

Body Style

Threaded Barrel

Length

27mm

IP Rating

IP67

Terminal Type

3-Pin M8

Mount Type

Flush

Width

13mm

Maximum Supply Voltage

24V

Housing Material

Stainless Steel

Maximum Detection

2mm

Minimum Operating Temperature

-25°C

Maximum DC Voltage

30V dc

Materials Detected

Metal

Maximum Operating Temperature

70°C

Standards/Approvals

IEC, EMC

Depth

2mm

Maximum Switching Frequency

1.5kHz

Shielding

Shielded

Series

E2B

Switching Current

200mA

Output Type

NPN

Product Details

E2B Stainless Steel Standard Length

The E2B range of stainless steel standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

IP67 rated for protection in wet environments
360 ° visible LED for operation Control
Pre-wired and connector variations available
Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)
