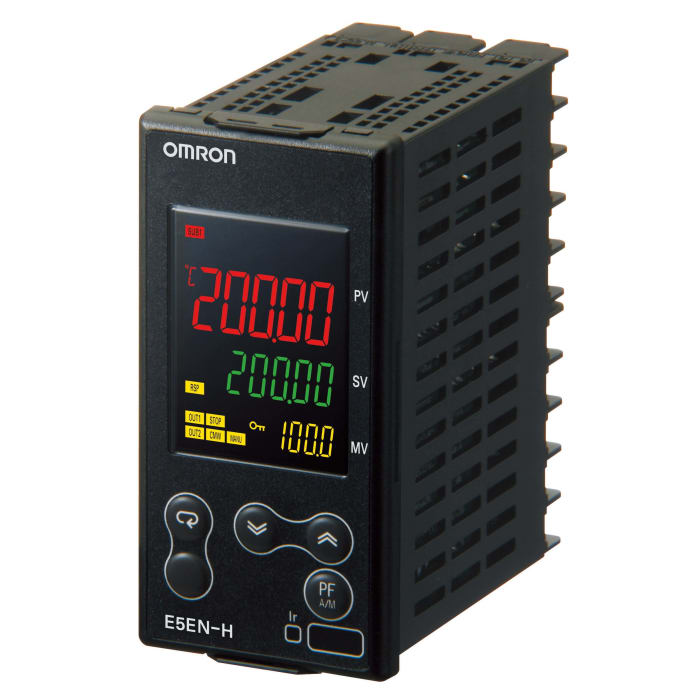

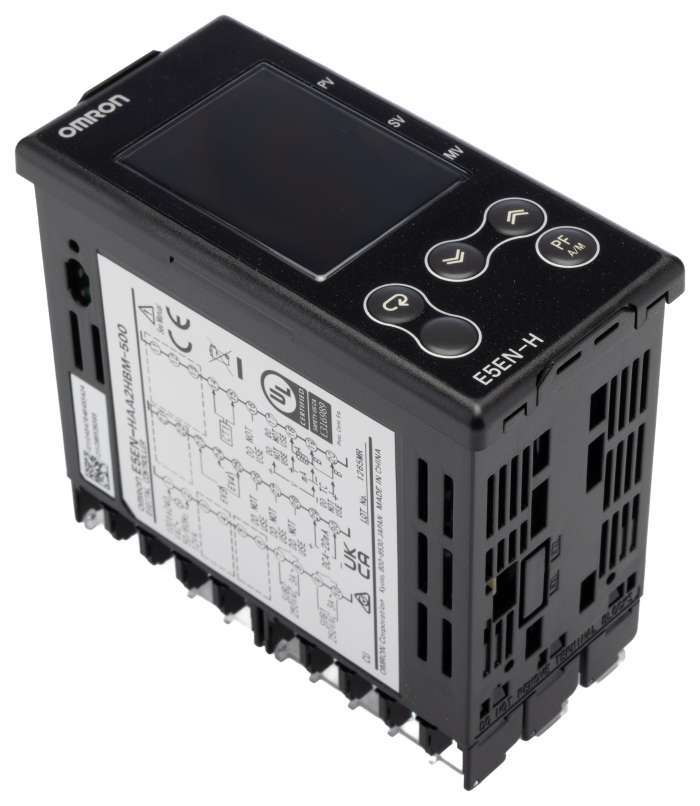

Omron E5EN Panel Mount PID Temperature Controller 4 Input, 3 Output 240V ac PID Controller
Technical Document
Specifications
Brand
OmronProduct Type
PID Temperature Controller
Number of Inputs
4
Number of Outputs
3
Maximum Current
50A
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
55°C
Terminal Type
Screw
Control Type
PID Controller
Maximum Supply Voltage
240V ac
Digital Comms
RS422, RS232C, RS485
Diagnostics
Yes
Maximum Voltage
250V
Display Type
11 Segment
Length
112mm
Standards/Approvals
EN 61000-4-11, EN 61000-4-3, EN 61000-4-6, EN 61326, UL 61010-1, CSA C22.2 No. 1010-1, EN 61010-1 (IEC 61010-1), EN 61000-4-5, EN 61000-4-4, EN 55011, EN 61000-4-2, EN 61000-4-8
IP Rating
IP66, IP00, IP20
Series
E5EN
Mount Type
Panel Mount
Panel Depth
78mm
Country of Origin
China
Product details
E5EN-H/E5AN-H 1/8 and 1/4 DIN Temperature Controllers
A high-performance controller with high resolution, high speed, and high input accuracy.In addition it has logic operations and preventive maintenance functions, and has an infrared port on the front panel.
High-resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60 ms.
Thermocouple/Pt input: ±0.1% of PV
Analogue input: ±0.1% FS
Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller
PV/SV-status display function can be set to display the PV or SV and the status of the temperature controller (auto/manual, RUN/STOP and alarms)
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
Preventive maintenance for relays using a control output ON/OFF counter
Omron E5N-H Range
