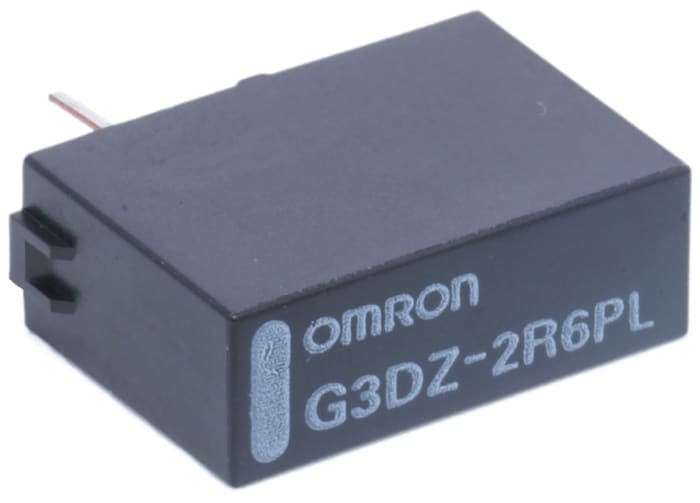

Omron G3DZ Series Solid State Relay, 0.6 A Load, PCB Mount, 264 V ac Load, 12V dc Control
Technical Document
Specifications
Brand
OmronMaximum Load Current
0.6A
Product Type
Solid State Relay
Mount Type
PCB
Maximum Load Voltage
264V ac
Minimum Load Voltage
3V
Minimum Control Voltage
3V
Maximum Control Voltage
12V dc
Series
G3DZ
Terminal Type
PCB Terminal
Contact Configuration
SPST-NO
On State Resistance
2.4Ω
Minimum Operating Temperature
30°C
Switching Function
No zero cross
Maximum Operating Temperature
85°C
Height
18.5mm
Length
19.7mm
Standards/Approvals
No
Width
6.9mm
Off State Leakage Current
10μA
Output Type
Photodiode
Product details
G3DZ SSR
These PCB mount MOSFET power relays have a maximum switching current of 0.6A and are suitable for switching full and half wave alternating currents.
SSR identical in size to the G6D series (stk no 512-9320 etc) with a max. ac/dc switching current of 0.6A
Suitable for switching full and half-wave alternating current
10μA maximum output leakage current
Output ON resistance: 2.4Ω
2500Vac dielectric strength between input and output
Input resistor and varistor incorporated
Single Phase connection line to neutral
See stk no 376-717 for a suitable PCB socket
Operating temperature range -30 to +85°C
