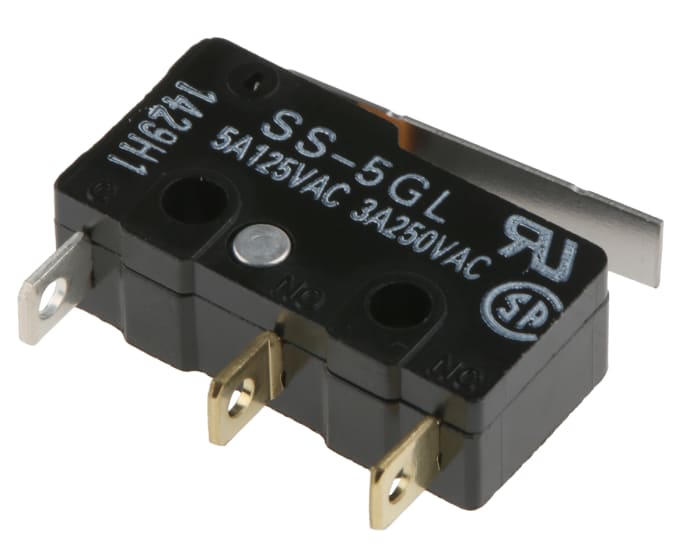

Omron Hinge Lever Micro Switch, Solder Terminal, 5A, 250 V ac, SPDT, IP40
Technical Document
Specifications
Brand
OmronProduct Type
Micro Switch
Actuator Type
Hinge Lever
Terminal Type
Solder
Contact Configuration
SPDT
IP Rating
IP40
Operating Force
0.49N
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
85°C
Microswitch Type
Subminiature
Contact AC Voltage
250V ac
Mechanical Life
30000000Operations
Hazardous Area Certification
No
Standards/Approvals
CSA, UL, RoHS
Series
SS
Country of Origin
Indonesia
Product details
Omron SS Subminiature Basic Switch
(5 A)
Incorporating simple and stable two split springs which enable a long service life (30,000,000 operations)
A variety of models with low operating force to high operating force are available
Solder, quick connect terminals (#110) and PCB terminals are available
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 24.08
AED 4.815 Each (In a Pack of 5) (ex VAT)
AED 25.28
AED 5.056 Each (In a Pack of 5) (inc. VAT)
5
AED 24.08
AED 4.815 Each (In a Pack of 5) (ex VAT)
AED 25.28
AED 5.056 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 245 | AED 4.815 | AED 24.08 |
| 250 - 745 | AED 3.584 | AED 17.92 |
| 750 - 1245 | AED 2.942 | AED 14.71 |
| 1250 - 2495 | AED 2.889 | AED 14.44 |
| 2500+ | AED 2.889 | AED 14.44 |
