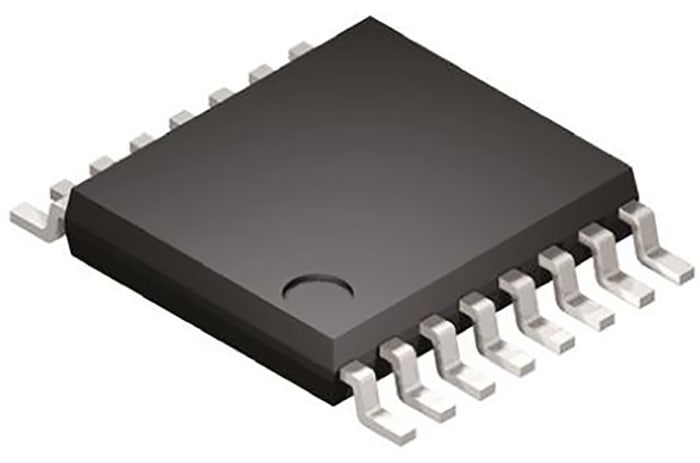

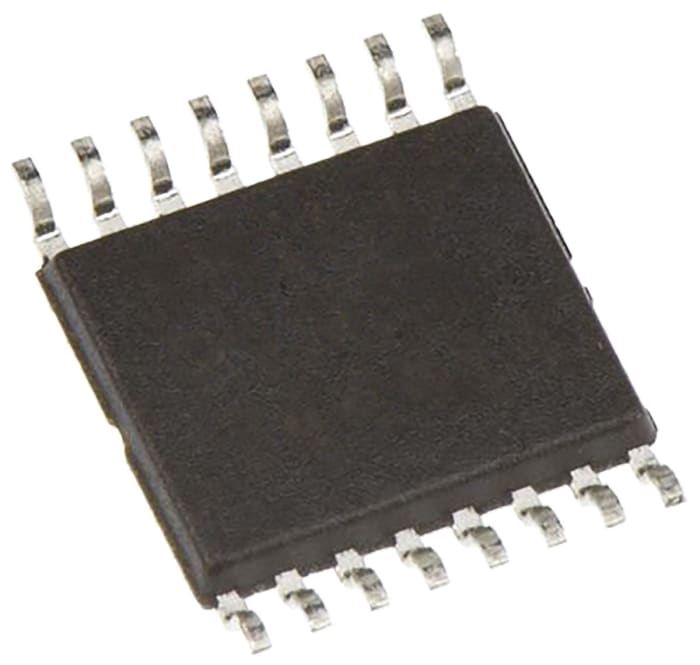

onsemi MC14504BDTG, Logic Level Translator Level Shifter 4 TTL to CMOS, CMOS, 16-Pin TSSOP
Technical Document
Specifications
Brand
onsemiDirection Type
Uni-Directional
Product Type
Logic Level Translator
Logic Family
CMOS
Maximum Propagation Delay Time @ CL
340ns
Mount Type
Surface
Package Type
TSSOP
Number of Elements per Chip
4
Output Type
CMOS/TTL
Pin Count
16
Logic Function
Level Shifter
Maximum Low Level Output Current
2.4mA
Minimum Supply Voltage
3V
Maximum High Level Output Current
-2.4mA
Translation
TTL to CMOS, CMOS
Maximum Supply Voltage
18V
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Standards/Approvals
No
Series
MC14504
Width
4.5 mm
Height
1.05mm
Length
5.1mm
Automotive Standard
AEC-Q100
Product details
4000 Series Logic Level Translators, Voltage Translators, ON Semiconductor
4000 CMOS Logic Family, ON Semiconductor
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 33.06
AED 3.306 Each (In a Pack of 10) (ex VAT)
AED 34.71
AED 3.471 Each (In a Pack of 10) (inc. VAT)
Standard
10
AED 33.06
AED 3.306 Each (In a Pack of 10) (ex VAT)
AED 34.71
AED 3.471 Each (In a Pack of 10) (inc. VAT)
Stock information temporarily unavailable.
Standard
10
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 90 | AED 3.306 | AED 33.06 |
| 100 - 490 | AED 2.48 | AED 24.80 |
| 500 - 990 | AED 2.204 | AED 22.04 |
| 1000 - 2490 | AED 1.763 | AED 17.63 |
| 2500+ | AED 1.653 | AED 16.53 |
