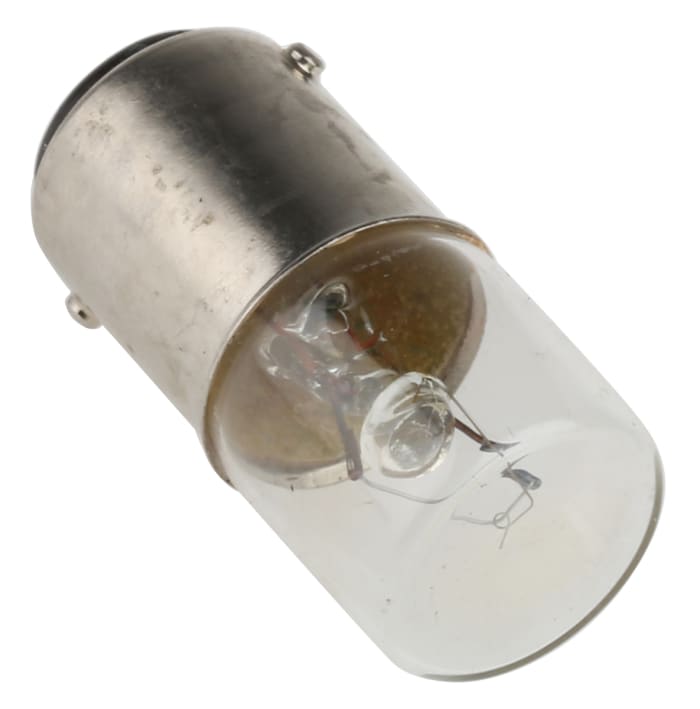

Orbitec BA15D Indicator Light, Clear, 24V, 200mA, 2000 h
Technical Document
Specifications
Brand
OrbitecProduct Type
Indicator Light
Voltage
24V
Lamp Base/Socket
BA15D
Sub Type
Filament Lamp
Current
200mA
Diameter
16 mm
Length
35mm
Lens Colour
Clear
Lifespan
2000h
Standards/Approvals
RoHS
Country of Origin
Korea, Republic Of
Product details
BA 15d filament lamps
Filament lamps will perform to specification and give optimum life when:
a) They are powered at the rated voltage from a stabilised 50 Hz AC supply.
b) Ambient temperature is in the range 20°C to 25°C.
c) No mechanical vibration is present.
Deviations from these criteria have a significant effect on lamp life, particularly with low current filaments (<80mA).
Power from a DC supply at the rated voltage can reduce the listed life by up to 50%.
The effect of deviation from the rated operating voltage should be noted:
5% above will reduce lamp life by up to 50%.
5% below will significantly increase lamp life.
Power consumption may vary up to ±10% compared to the listed values at the rated supply voltage. Therefore particular care should be taken when a number of lamps are connected in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
Stock information temporarily unavailable.
AED 139.42
AED 139.42 1 Pack of 10 (ex VAT)
AED 146.39
AED 146.39 1 Pack of 10 (inc. VAT)
1
AED 139.42
AED 139.42 1 Pack of 10 (ex VAT)
AED 146.39
AED 146.39 1 Pack of 10 (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 139.42 |
| 5 - 24 | AED 125.67 |
| 25 - 49 | AED 112.51 |
| 50 - 99 | AED 100.69 |
| 100+ | AED 92.72 |
