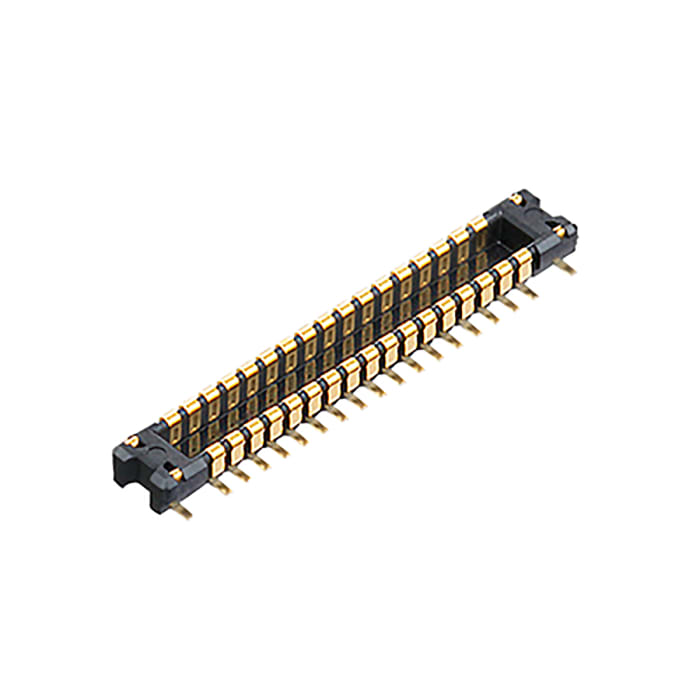

Panasonic S35 Series Straight Surface PCB Header, 24 Contact(s), 0.35 mm Pitch, 2 Row, Shrouded

Name: Panasonic S35 Series Straight Surface PCB Header, 24 Contact(s), 0.35 mm Pitch, 2 Row, Shrouded
Brand: Panasonic
SKU: 1790135
Availability: LimitedAvailability

RS Stock No.: 179-0135Brand: PanasonicManufacturers Part No.: AXG224144

View all in PCB Headers

Technical Documents

Specifications

Brand

Panasonic

Product Type

PCB Header

Series

S35

Pitch

0.35mm

Current

5.0

Number of Contacts

Number of Rows

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Surface

Contact Material

Copper Alloy

Termination Type

Solder

Voltage

60V

Country of Origin

Japan

Product Details

FEATURES
Slim: width 1.7mm
Low proﬁle construction: mated height 0.6 mm/0.8 mm
TOUGH CONTACT construction withstands tough
environments despite being slim and low proﬁle.
For 0.6mm mated height, thanks to our proprietary Fine
ﬁtting construction, high removability with a nice click feel
is maintained while being low proﬁle.
APPLICATIONS
Wearable devices, smartphones and hearable devices

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in PCB Headers

Stock information temporarily unavailable.

AED 1,926.00

AED 3.852 Each (On a Reel of 500) (ex VAT)

AED 2,022.30

AED 4.045 Each (On a Reel of 500) (inc. VAT)

Panasonic S35 Series Straight Surface PCB Header, 24 Contact(s), 0.35 mm Pitch, 2 Row, Shrouded

AED 1,926.00

AED 3.852 Each (On a Reel of 500) (ex VAT)

AED 2,022.30

AED 4.045 Each (On a Reel of 500) (inc. VAT)

Panasonic S35 Series Straight Surface PCB Header, 24 Contact(s), 0.35 mm Pitch, 2 Row, Shrouded

Stock information temporarily unavailable.

Quantity	Unit price	Per Reel
500 - 500	AED 3.852	AED 1,926.00
1000 - 2000	AED 3.745	AED 1,872.50
2500 - 4500	AED 3.638	AED 1,819.00
5000+	AED 3.531	AED 1,765.50
