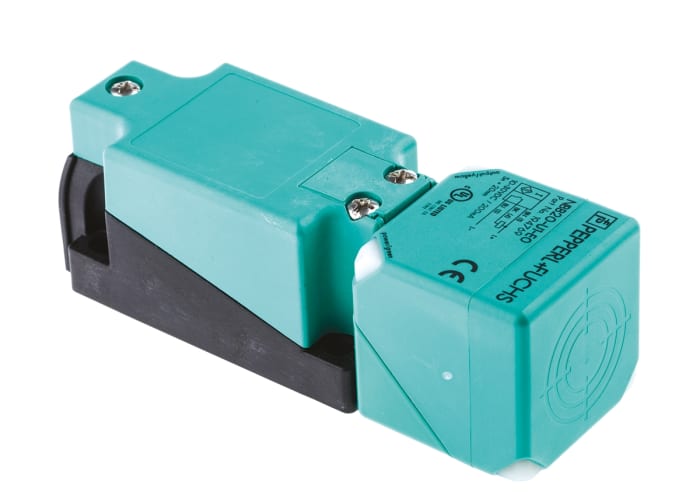

Pepperl + Fuchs NBB20-U1-E0 Block Inductive Proximity Sensor, M20 x 1.5 NPN 3V 20 mm 30 V dc 200mA

Name: Pepperl + Fuchs NBB20-U1-E0 Block Inductive Proximity Sensor, M20 x 1.5 NPN 3V 20 mm 30 V dc 200mA
Brand: Pepperl + Fuchs
SKU: 6677218
Availability: LimitedAvailability

RS Stock No.: 667-7218Brand: Pepperl + FuchsManufacturers Part No.: NBB20-U1-E0

View all in Proximity Sensors

Technical Documents

Specifications

Brand

Pepperl + Fuchs

Thread Size

M20 x 1.5

Product Type

Inductive Proximity Sensor

Body Style

Block

Length

118mm

IP Rating

IP69K

Terminal Type

Screw

Mount Type

Flush

Width

40mm

Maximum Supply Voltage

Housing Material

Polyamide

Maximum Detection

20mm

Minimum Operating Temperature

-25°C

Maximum DC Voltage

30V dc

Maximum Operating Temperature

85°C

Standards/Approvals

CCSAUS, cULus, EN 60947-5-2:2007, General Purpose, IEC 60947-5-2:2007

Depth

40mm

Maximum Switching Frequency

150Hz

Shielding

Shielded

Switching Current

200mA

Output Type

NPN

Product Details

Varikont DC Switch

New Varikont series of inductive proximity sensors with enhanced performance and environmental protection, yet in a dimensionally identical package.

Features and benefits

4 LEDs indicator for 360° all-round visibility
Tough PA & metal housing
M20 glandable cable entry
IP69K sealing

Block and Limit Switch Style

All dc switches in this range have reverse polarity and short circuit protection. Embeddable versions can be flush mounted in metal.
