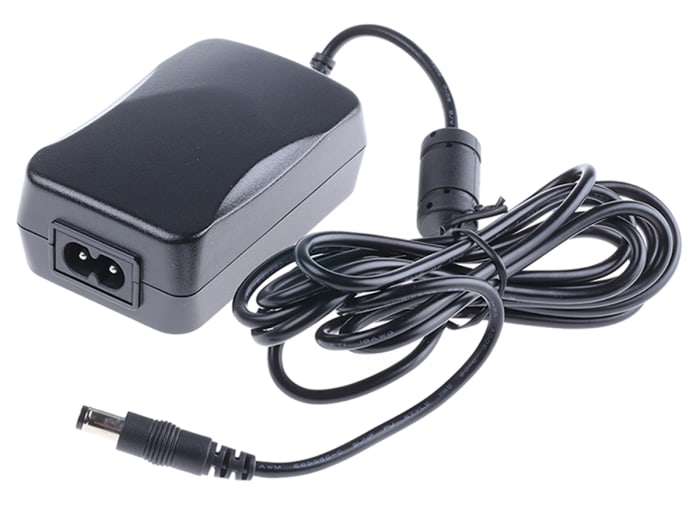

Phihong Power Brick AC/DC Adapter 12V dc Output, 0 → 1.25A Output
Technical Document
Specifications
Brand
PhihongAdapter Type
Power Brick Adapter
Output Voltage
12V dc
Input Voltage
80 → 264V ac
Output Current
0 → 1.25A
Maximum Temperature
+40°C
Output Connector
DC Plug
Input Connector
IEC 60320-C8
Number of Outputs
1
Cable Length
1500mm
Standards Met
CB, CE, cUL/UL, EN 55022 Class B, FCC Class B, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Length
81.2mm
Line Regulation Range
±5%
Width
50mm
Minimum Temperature
0°C
Series
PSAA15W
Energy Efficiency Level
VI
Country of Origin
China
Product details
Phihong PSA Series Desktop Power Supply
PSA series of desktop power adapter with ErP level V compliance and a wide AC input voltage range of 90 to 264 Vac. This low profile, compact, two wire input desktop power adapter has a low no load power draw of less than 0.5W and a leakage current of maximum 3.5mA. Typical applications for these desktop power adapters include portable equipment, networking, peripherals and terminals and gaming machines.
Features and Benefits
Low cost.
ErP level VI compliance.
Class B EMI.
Ecodesign ErP directive compliant.
Non-vented and spill proof case.
No load power consumption less than 0.5W.
Low profile design.
Various IEC320 connectors available.
EISA compliant.
