Technical Documents
Specifications
Brand
Phoenix ContactCoil Voltage
12V dc
Product Type
Relay Module
Contact Configuration
SPDT
Mount Type
DIN Rail
Series
PLC-INTERFACE
Terminal Type
Push-in
Switching Current
6A
Minimum Operating Temperature
-40°C
Switching DC Voltage
250V dc
Switching AC Voltage
250V ac
Coil Current
15.3mA
Coil Type
Monostable
Contact Material
Silver Tin Oxide
Maximum Operating Temperature
60°C
Standards/Approvals
CE, cULus Listed, DIN VDE 0110, DNV GL, EAC, IEC 60255/DIN VDE 0435, IEC 60664, IEC 60664A, UKCA
Width
6.2mm
Length
94mm
Height
80mm
Country of Origin
Germany
Product Details

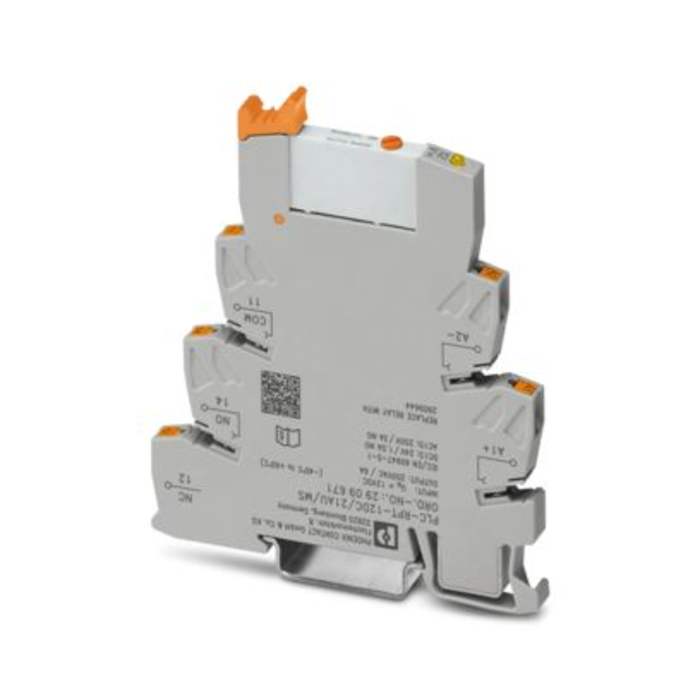

The Phoenix Contact PLC-INTERFACE with basic terminal block features Push-in connection and a plug-in miniature relay with a multi-layer gold contact and manual operation. Designed for reliable switching, it includes 1 changeover contact and supports a 12 V DC input voltage.
Stock information temporarily unavailable.
AED 124.33
AED 124.33 Each (ex VAT)
AED 130.55
AED 130.55 Each (inc. VAT)
1
AED 124.33
AED 124.33 Each (ex VAT)
AED 130.55
AED 130.55 Each (inc. VAT)
Stock information temporarily unavailable.
1
