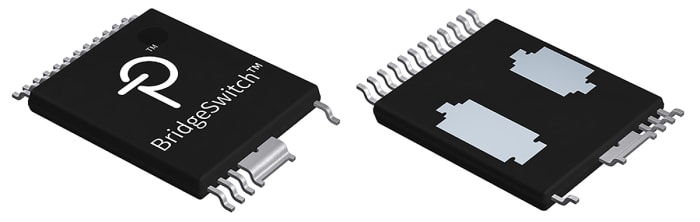

Power Integrations BRD1165C-TL, AC, Brushless DC Motor Motor Driver IC 24-Pin, InSOP-C

RS Stock No.: 187-5422Brand: Power IntegrationsManufacturers Part No.: BRD1165C-TL
brand-logo
View all in Motor Driver ICs

Technical Document

Specifications

Brand

Power Integrations

Product Type

Motor Driver IC

Motor Type

AC, Brushless DC Motor

Configuration

H Bridge

Mount Type

Surface

Package Type

InSOP-C

Output Current

3A

Pin Count

24

Minimum Supply Voltage

-15V

Maximum Supply Voltage

600V

Typical Switching Frequency

20kHz

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Width

10.8 mm

Length

9.4mm

Series

BRD

Height

1.45mm

Standards/Approvals

No

Inverter Power Rating

400W

Supply Current

12mA

Automotive Standard

No
