Technical Documents
Specifications
Brand
Renesas ElectronicsProduct Type
RF Switch
Switching Speed
3000ns
Port to Port Isolation
40dB
Maximum Insertion Loss
0.54dB
Contact Configuration
SPDT
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
105°C
Standards/Approvals
No
Series
F2972
Country of Origin
Taiwan, Province Of China
Product Details

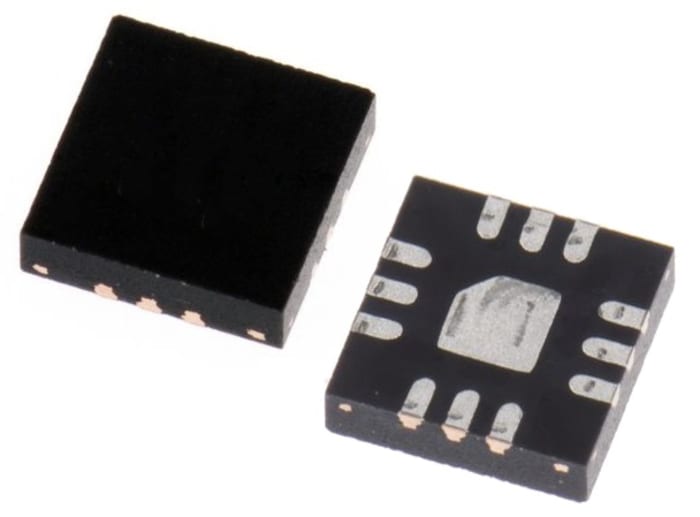

The Renesas Electronics F2972 series RF switch is a single pole double throw reflective RF switch featuring high linearity and wide bandwidth. This switch is optimized from 5MHz to 1.8GHz to support downstream cable modem future migration for DOCSIS 3.1 applications and operates at up to 10GHz to support a multitude of wireless RF applications. Superb performance is achieved when used in either 50Ω or 75Ω terminating impedance applications.
Stock information temporarily unavailable.
AED 20.22
AED 10.112 Each (In a Pack of 2) (ex VAT)
AED 21.23
AED 10.618 Each (In a Pack of 2) (inc. VAT)
Standard
2
AED 20.22
AED 10.112 Each (In a Pack of 2) (ex VAT)
AED 21.23
AED 10.618 Each (In a Pack of 2) (inc. VAT)
Stock information temporarily unavailable.
Standard
2
| Quantity | Unit price | Per Pack |
|---|---|---|
| 2 - 48 | AED 10.112 | AED 20.22 |
| 50 - 98 | AED 8.614 | AED 17.23 |
| 100 - 248 | AED 7.436 | AED 14.87 |
| 250 - 998 | AED 7.062 | AED 14.12 |
| 1000+ | AED 6.26 | AED 12.52 |
