Technical Documents
Specifications
Brand
RS ProProduct Type
Chassis Mount Transformer
Primary Voltage
230 V ac
Secondary Voltage
9 V ac
Number of Outputs
2
Power
50VA
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
70°C
Minimum Operating Frequency
50Hz
Length
79mm
Depth
65mm
Weight
1kg
Width
62mm
Maximum Operating Frequency
60Hz
Standards/Approvals
IEC 61558-2-6
Country of Origin
Poland
Product Details

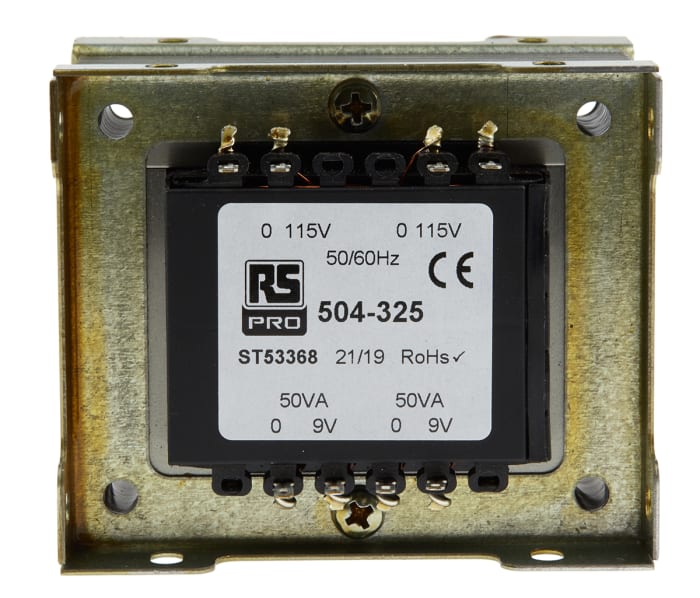

Chassis Mount Clamp & Frame Construction 115/230Vac Primary Transformer
Features and Benefits
"Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps 6VA to 50VA
Multi-hole frame fixing 100VA
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742"
Chassis mounting mains transformers with twin 115Va.c. 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Suitable transformer shrouds: 6VA = 503-912 ; 12 & 20VA = 504-004 ; 50, 75 & 100VA = 503-928
BS3535; EN 60 742
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
AED 269.10
AED 269.10 Each (ex VAT)
AED 282.56
AED 282.56 Each (inc. VAT)
1
AED 269.10
AED 269.10 Each (ex VAT)
AED 282.56
AED 282.56 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | AED 269.10 |
| 25+ | AED 244.01 |
