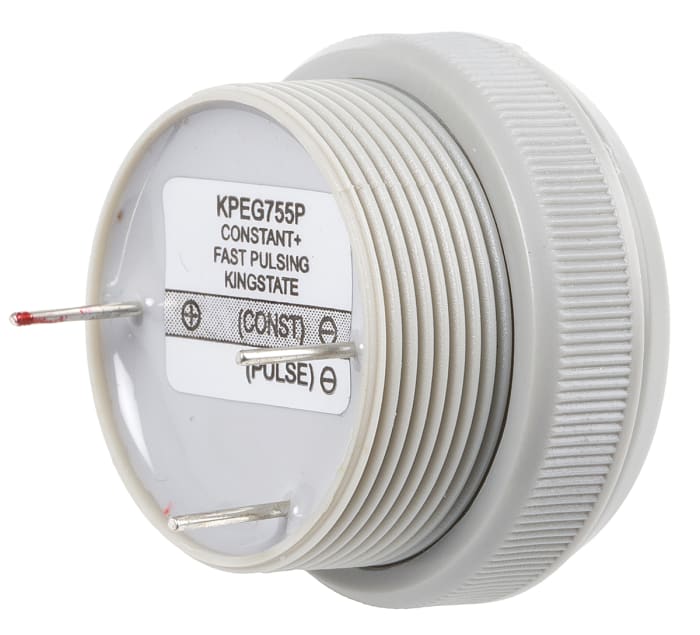

RS PRO 92 dB Panel Mount Fast Pulse, Continuous Internal 23.5 mm Piezo Buzzer Component 6 V Min 28 V Max

RS Stock No.: 237-962Brand: RS PRO
brand-logo
View all in Piezo Buzzers

Technical Document

Specifications

Brand

RS Pro

Product Type

Piezo Buzzer Component

Mount Type

Panel Mount

Minimum Supply Voltage

6V

Maximum Supply Voltage

28V

Sound Level

92dB

Drive Type

Internal

Tone Type

Fast Pulse, Continuous

Diameter

35.5 mm

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

85°C

Termination Style

PC Pin

Height

23.5mm

Standards/Approvals

RoHS

Maximum Frequency

4.1kHz

Minimum Frequency

3100Hz

Supply Current

13mA

Country of Origin

Taiwan, Province Of China

You may be interested in

Stock information temporarily unavailable.

AED 84.74

AED 84.74 Each (ex VAT)

AED 88.98

AED 88.98 Each (inc. VAT)

RS PRO 92 dB Panel Mount Fast Pulse, Continuous Internal 23.5 mm Piezo Buzzer Component 6 V Min 28 V Max
Select packaging type

Standard

Select packaging type

Standard - each

Available in multiples of 1.

Production -

Available in multiples of 1.

Recommended for ordering in large quantities. Items are packaged ready for insertion into machinery, allowing you to improve production efficiency.

1

Available in multiples of 1
1AED 84.74
2AED 169.49
3AED 254.23
4AED 338.98
5AED 406.87
6AED 488.24
7AED 569.61
8AED 650.99
9AED 732.36
10AED 777.89
11AED 855.68
12AED 933.47
13AED 1,011.26
14AED 1,089.05
15AED 1,166.84

AED 84.74

AED 84.74 Each (ex VAT)

AED 88.98

AED 88.98 Each (inc. VAT)

RS PRO 92 dB Panel Mount Fast Pulse, Continuous Internal 23.5 mm Piezo Buzzer Component 6 V Min 28 V Max

Stock information temporarily unavailable.

Select packaging type

Standard

Select packaging type

Standard - each

Available in multiples of 1.

Production -

Available in multiples of 1.

Recommended for ordering in large quantities. Items are packaged ready for insertion into machinery, allowing you to improve production efficiency.

1

Available in multiples of 1
1AED 84.74
2AED 169.49
3AED 254.23
4AED 338.98
5AED 406.87
6AED 488.24
7AED 569.61
8AED 650.99
9AED 732.36
10AED 777.89
11AED 855.68
12AED 933.47
13AED 1,011.26
14AED 1,089.05
15AED 1,166.84

QuantityUnit price
1 - 4AED 84.74
5 - 9AED 81.37
10 - 24AED 77.79
25+AED 74.63
You may be interested in

Technical Document

Specifications

Brand

RS Pro

Product Type

Piezo Buzzer Component

Mount Type

Panel Mount

Minimum Supply Voltage

6V

Maximum Supply Voltage

28V

Sound Level

92dB

Drive Type

Internal

Tone Type

Fast Pulse, Continuous

Diameter

35.5 mm

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

85°C

Termination Style

PC Pin

Height

23.5mm

Standards/Approvals

RoHS

Maximum Frequency

4.1kHz

Minimum Frequency

3100Hz

Supply Current

13mA

Country of Origin

Taiwan, Province Of China
