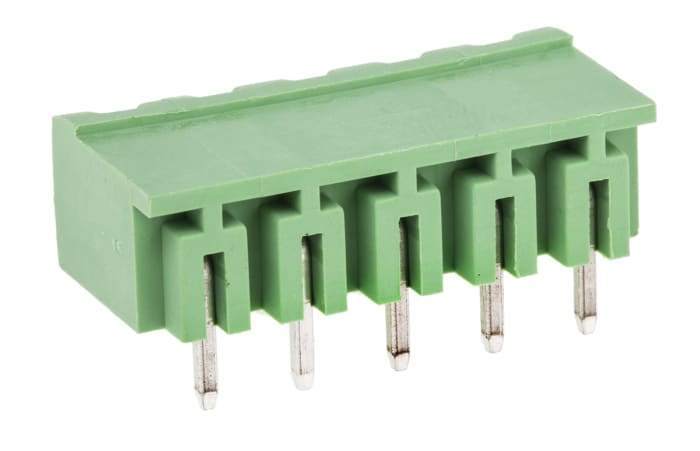

RS PRO CTB9352 Series Right Angle Through Hole Pluggable Terminal Block, 5 Contact(s), 5 mm Pitch, 1 Row, Shrouded
Technical Document
Specifications
Brand
RS ProProduct Type
Pluggable Terminal Block
Series
CTB9352
Pitch
5mm
Current
15A
Number of Contacts
5
Housing Material
Polyamide
Number of Rows
1
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Mount Type
Through Hole
Contact Plating
Tin
Minimum Operating Temperature
-40°C
Row Pitch
5mm
Termination Type
Solder
Tail Pin Length
3.5mm
Contact Gender
Male
Maximum Operating Temperature
105°C
Standards/Approvals
Flame Resistant, LR, UL94-V0
Country of Origin
China
Product details
RS 5.0mm Horizontal PCB Terminal Block Headers
5mm pitch horizontal mount PCB terminal block headers made from green UL94-V0 flame retardant PA with a closed end design and polarised mouldings. These 5mm pluggable PCB terminal block headers have guided pin alignment and mate with 5mm pitch female terminal block plug connectors, see stock number 897-1159 typically.
