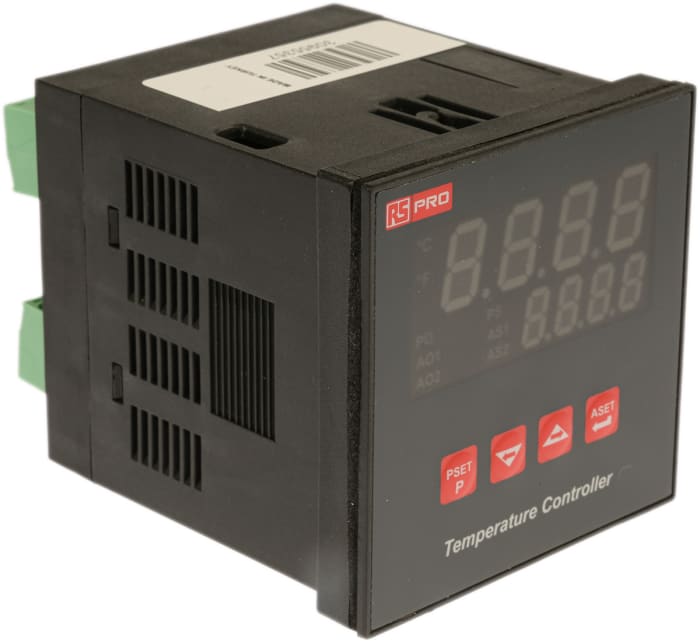

RS PRO ESM Panel Mount PID Temperature Controller, 3 Output Relay 230V ac On-Off
Technical Document
Specifications
Brand
RS ProProduct Type
PID Temperature Controller
Output Type
Relay
Number of Outputs
3
Minimum Operating Temperature
0°C
Maximum Operating Temperature
50°C
Control Type
On-Off
Maximum Supply Voltage
230V ac
Maximum Voltage
230V ac
Display Type
Multi Line
Length
72mm
Standards/Approvals
CE
Width
72mm
IP Rating
IP65
Series
ESM
Mount Type
Panel Mount
Input Type
RTD, Current, Voltage, Universal
Panel Depth
84mm
Country of Origin
Turkey
Product details
PID Temperature Controller
This series of PID temperature controllers are designed for measuring and controlling a process value. They can be used in many applications with their TC and RTD temperature measurement input, multifunction control outputs & selectable alarm functions.
This range of temperature controller can be used in a wide variety of applications.
4 digits process (PV) and 4 digits set (SV) display
Process input (TC, RTD)
Programmable ON/OFF, P, PI, PD and PID control forms
Adaptation of PID Coefficients to the system with Self-Tune operation (Step Response Tuning)
Programmable Heating or Cooling Functions for Control Output
Selectable Alarm Functions for Alarm Output
Applications include:
Petro-Chemistry
Plastic
Glass
Automotive
Mechanical production
textile
