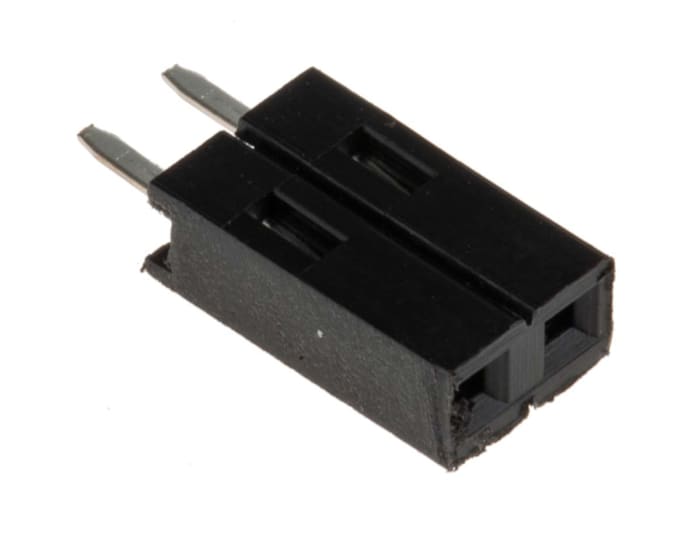

RS PRO Straight Through Hole PCB Socket, 2-Contact, 1 Row, 2.54 mm Pitch Solder
Technical Document
Specifications
Brand
RS ProNumber of Contacts
2
Product Type
PCB Socket
Number of Rows
1
Sub Type
Socket Strip
Pitch
2.54mm
Current
12A
Termination Type
Solder
Mount Type
Through Hole
Orientation
Straight
Connector System
Board-to-Board
Minimum Operating Temperature
-40°C
Contact Gender
Female
Maximum Operating Temperature
105°C
Contact Material
Bronze
Standards/Approvals
No
Country of Origin
Taiwan, Province Of China
Product details

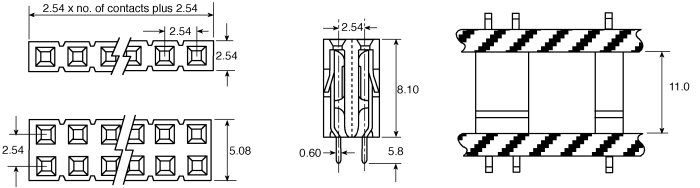

Top Entry Sockets (single & double)
Single and double row 0.1in. pitch top entry sockets allowing vertical stacking of PCBs, when populated with corresponding headers above.,The sockets incorporate straight tri-beam tin plate contacts.
2.54mm PCB Connector RS Range
A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.
Stock information temporarily unavailable.
AED 19.80
AED 1.98 Each (In a Pack of 10) (ex VAT)
AED 20.79
AED 2.079 Each (In a Pack of 10) (inc. VAT)
10
AED 19.80
AED 1.98 Each (In a Pack of 10) (ex VAT)
AED 20.79
AED 2.079 Each (In a Pack of 10) (inc. VAT)
Stock information temporarily unavailable.
10
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 240 | AED 1.98 | AED 19.80 |
| 250 - 990 | AED 1.338 | AED 13.38 |
| 1000 - 4990 | AED 1.124 | AED 11.24 |
| 5000+ | AED 1.07 | AED 10.70 |
