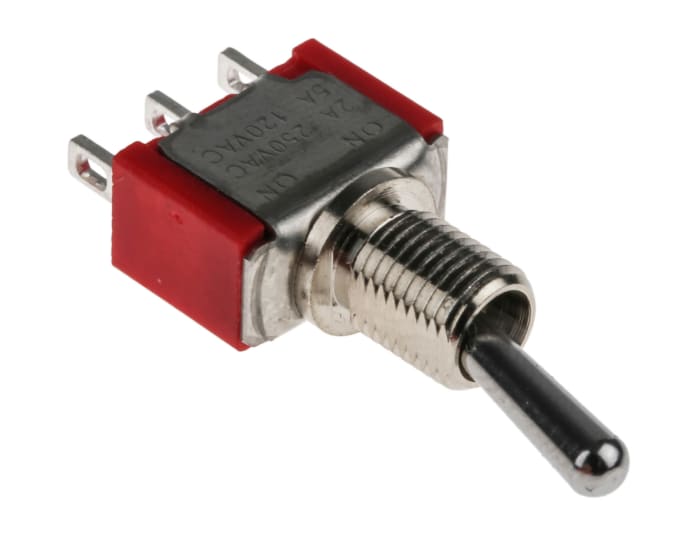

RS PRO Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal
Technical Document
Specifications
Brand
RS ProContact Configuration
SPDT
Switch Operation
On-On
Contact Current Rating
5 A @ 28 V dc
Mounting Type
Panel Mount
Terminal Type
Solder
Panel Cut Out Diameter
6.35mm
Actuator Length
10.41mm
Actuator Material
Chromium Plated Brass
Contact Material
Silver Plated Brass (Movable)
Contact Resistance
0.01Ω
Panel Cut Out Size
6.35mm
Minimum Operating Temperature
-30°C
Operating Temperature Range
-30 → +85°C
Maximum Operating Temperature
+85°C
Standards Met
UL Listed
Country of Origin
China
Product details
Toggle Switches, Min, Commercial
Silver contacts
Solder tag terminals
Suitable for moderate duty applications
Brass actuator and Diallyl Phthalate case
Approvals
UL recognised component for Canada and US
Stock information temporarily unavailable.
AED 74.90
AED 14.98 Each (In a Pack of 5) (ex VAT)
AED 78.64
AED 15.729 Each (In a Pack of 5) (inc. VAT)
5
AED 74.90
AED 14.98 Each (In a Pack of 5) (ex VAT)
AED 78.64
AED 15.729 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 245 | AED 14.98 | AED 74.90 |
| 250 - 495 | AED 12.252 | AED 61.26 |
| 500 - 1245 | AED 10.326 | AED 51.63 |
| 1250+ | AED 9.63 | AED 48.15 |
