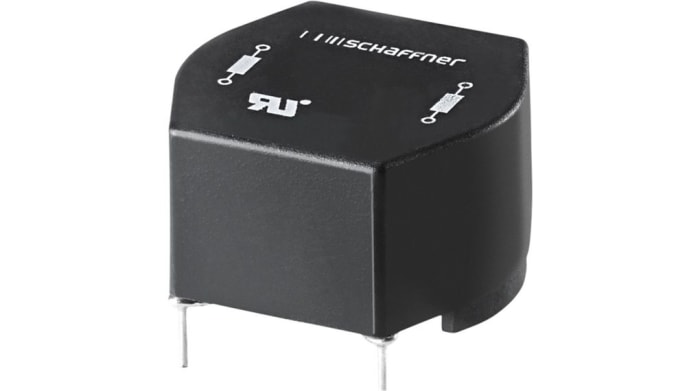

Schaffner 700 μH Tinned Copper Current Compensated Choke, Max SRF:3 MHz, 4 A Idc, 24 mΩ Rdc, RN112

RS Stock No.: 285-8749Brand: SchaffnerManufacturers Part No.: RN112-4-02-0M7Distrelec Article No.: 300-82-877
brand-logo
View all in Leaded Inductors

Technical Document

Specifications

Brand

Schaffner

Inductance

700 μH

Product Type

Current Compensated Choke

Maximum DC Current

4A

Mount Type

Through Hole

Maximum DC Resistance

24mΩ

Automotive Standard

No

Height

12.6mm

Pin Count

4

Minimum Operating Temperature

-40°C

Core Material

Tinned Copper

Maximum Operating Temperature

100°C

Maximum Self Resonant Frequency

3MHz

Inductance Tolerance

-30 to 50 %

Termination Style

Radial Lead

Length

17.7mm

Depth

17.1mm

Standards/Approvals

No

Series

RN112

Country of Origin

Switzerland
