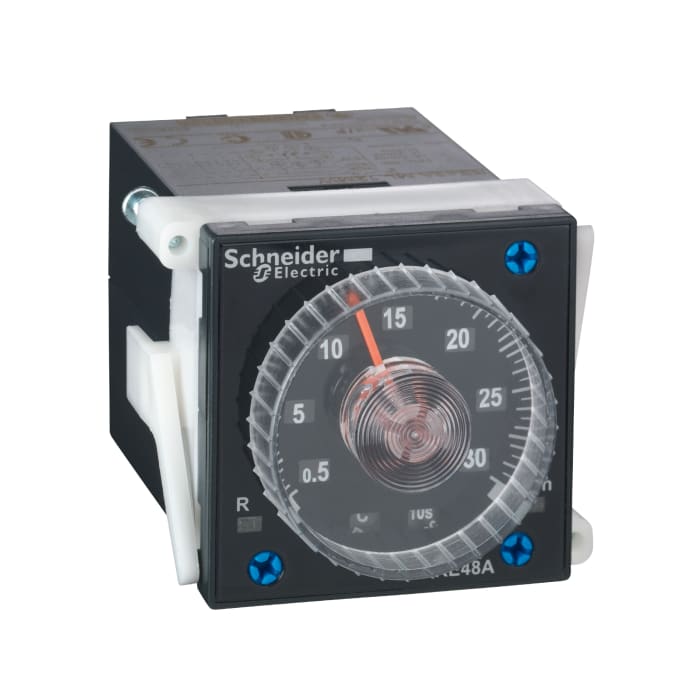

Schneider Electric Harmony Time Series Panel Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 0.02 s →
Technical Document
Specifications
Brand
Schneider ElectricSupply Voltage
24 → 240V ac/dc
Mounting Type
Panel Mount
Mode of Operation
Interval, Power ON Delay
Time Range
0.02 s → 300h
Number of Contacts
2
Number of Timer Functions
Multi Function
Contact Configuration
DPDT
Time Increment
Hours, Minutes, Seconds
Maximum Current
5A
Maximum Voltage
240V ac/dc
Terminal Type
8-Pin Connector
Minimum Voltage
24V ac/dc
Power Supply
External
Width
48mm
Depth
96.8mm
Better World Product (Find out more)
Yes
Length
48mm
Better World Verification
Green Premium
Series
Harmony Time
Maximum Operating Temperature
+50°C
Contact Material
Silver Nickel
Minimum Operating Temperature
-20°C
Country of Origin
Indonesia
Product details
Multi-functional Timers- RE48 Series
• 2 functions
• 48 x 48 mm
• Plug-in sub-base; 8 or 11 pin
• Self-extinguishing housing
• Selector switch on front panel
• 24-240 V ac supply voltage
• LED status indication
• IP50 (front face) & IP40 (housing) protection
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
AED 571.20
Each (ex VAT)
AED 599.76
Each (inc. VAT)
1
AED 571.20
Each (ex VAT)
AED 599.76
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | AED 571.20 |
| 10+ | AED 485.50 |
