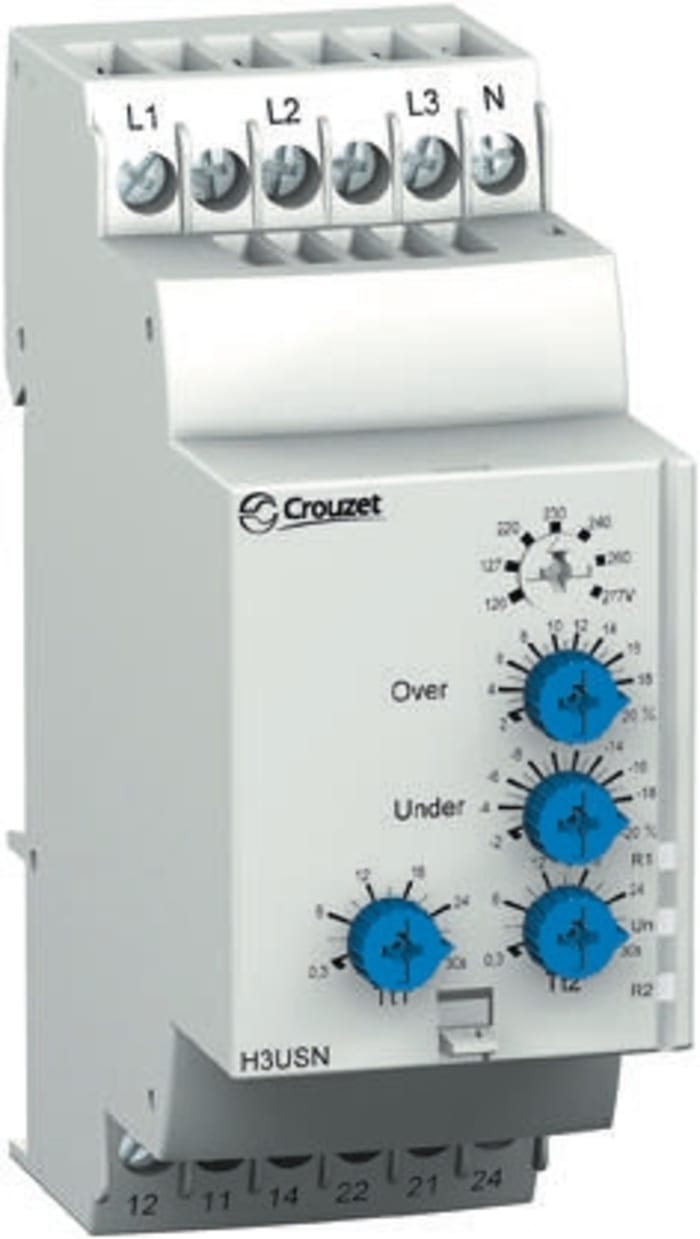

Schneider Electric Voltage Monitoring Relay, 3 Phase, DPDT, 114 → 329V ac, DIN Rail
Technical Document
Specifications
Brand
Schneider ElectricMonitoring Application
Voltage
Electrical Phase
3
Contact Configuration
DPDT
Voltage Sensing Range
114 → 329V ac
Voltage Sensitivity
Absence of Neutral, Overvoltage and Undervoltage Between Neutral, Overvoltage and Undervoltage Between Phase
Mounting Type
DIN Rail
Time Delay
0.3 → 30s
Series
Harmony Control
Better World Product (Find out more)
Yes
Better World Verification
Green Premium
Height
90mm
Length
72mm
Minimum Voltage Sensed
114V ac
Operating Temperature Range
+50°C
Terminal Type
Screw
Minimum Operating Temperature
-20°C
Width
35mm
Maximum Operating Temperature
+50°C
Dimensions
72 x 35 x 90mm
Maximum Voltage Sensed
329V ac
Country of Origin
France
Product details
RM17 UB3 and RM35 UB3 Three-Phase Voltage Control Relay
Schneider Electric RM17/35 UB measurement and control relays for 3 phase supplies, monitor correct sequences of phases L1, L2 and L3. It also monitors total loss of one or more phases, asymmetry, and over and undervoltage with independent adjustments. In the event of voltage fault, the relay opens at the end of the time delay set by the user, if the device is switched on with a measured fault, the relay remains open.
Checks its own power supply
Clear hinged front cover
Potentiometer selects voltages between phases
LED display of output status
DIN Rail mounting
Approvals
UL, CSA, GL, C-Tick, GOST
Standards
NF EN 60255-6 and IEC 60255-6
