SMC Threaded, Electroless Nickel Plated Brass Pneumatic Fitting, Push-in 4 mm Push In 4 mm

SMC Pneumatic Fitting, Push- inches 4mm Connection size, Threaded Branch Connection Type - KQ2T04-M5A

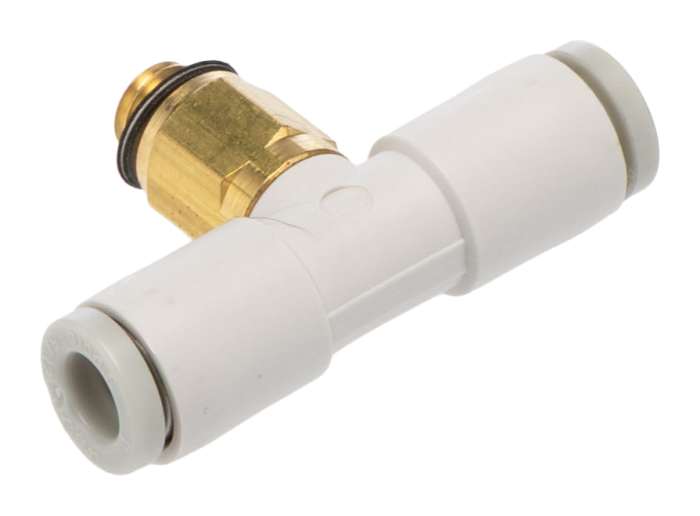

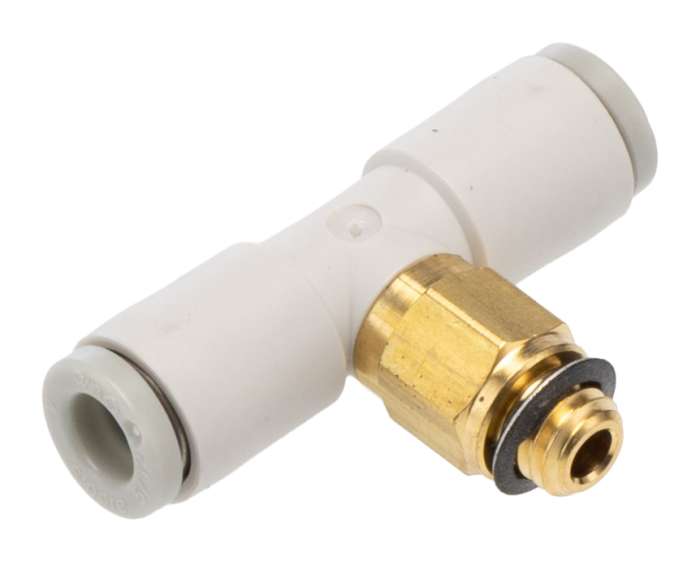

This pneumatic fitting is a Compact connector designed to join pneumatic tubing with a threaded branch in industrial Air systems. It provides a push-in connection for 4mm tubing on one end while the other end uses a threaded M5 branch, enabling easy linking of supply lines and branches within automation, electrical and mechanical installations.

Features and Benefits:

• Electroless nickel-plated brass body provides corrosion resistance and longevity
  Push-in 4mm connection enables quick tool-free tube insertion
  Threaded branch accepts M5 thread for secure component integration
  Conforms to JIS B0203 and JIS B0205 for standardised thread interfaces
  RoHS compliance reduces hazardous-substance concerns in assemblies

Applications

• Suitable for connecting 4mm pneumatic tubing to control valves
  Ideal for branched Air supply lines in automation panels
  Used for tap-offs to sensors and small actuators in mechanical systems
  Can be used for Compact pneumatic manifolds in electronics enclosures

What material is used for the fitting’s main construction?

The body is manufactured from brass with an electroless nickel finish to improve surface durability and resistance to environmental wear.

Which thread type should mating components have for correct installation?

Mating parts must provide an M5 threaded receptacle compatible with the branch connection to ensure a leak-minimised joint.

How does the tube connection operate under maintenance conditions?

The push-in mechanism permits Rapid disconnection and reconnection of 4mm tubing without additional tools for straightforward servicing.

Are there recognised standards that define its thread and Interface compatibility?

It is produced to comply with JIS B0203 and JIS B0205 specifications governing thread dimensions and compatibility.
