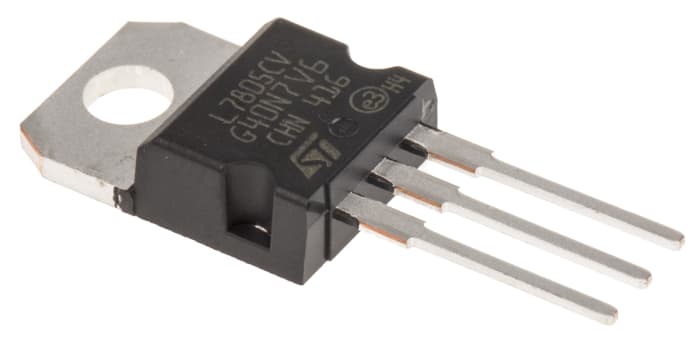

STMicroelectronics L7805CV-DG, Voltage Regulator 35V TO-220 3-Pin
Technical Document
Specifications
Brand
STMicroelectronicsProduct Type
Voltage Regulator
Package Type
TO-220
Mount Type
Through Hole
Polarity
Positive
Quiescent Current
6mA
Pin Count
3
Width
4.6 mm
Series
L78xx
Height
15.75mm
Length
10.4mm
Standards/Approvals
No
Maximum Operating Temperature
125°C
Maximum Input Voltage
35V
Automotive Standard
No
Country of Origin
China
Product details
L78 Series Linear Voltage Regulator, STMicroelectronics
STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.
Features and Benefits
Output current up to 1.5 A
Thermal overload protection
Output transition SOA protection
Output current up to 1.5 A
Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;
24 V
Applications
Power Management
Linear Voltage Regulators, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 19.80
AED 1.98 Each (In a Pack of 10) (ex VAT)
AED 20.79
AED 2.079 Each (In a Pack of 10) (inc. VAT)
Standard
10
AED 19.80
AED 1.98 Each (In a Pack of 10) (ex VAT)
AED 20.79
AED 2.079 Each (In a Pack of 10) (inc. VAT)
Stock information temporarily unavailable.
Standard
10
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 40 | AED 1.98 | AED 19.80 |
| 50 - 90 | AED 1.872 | AED 18.72 |
| 100 - 240 | AED 1.766 | AED 17.66 |
| 250 - 490 | AED 1.712 | AED 17.12 |
| 500+ | AED 1.658 | AED 16.58 |
