STMicroelectronics SM15T18A 1-Element Uni-Directional TVS Diode, 1500 W, 2-Pin SMC

RS Stock No.: 486-4757Brand: STMicroelectronicsManufacturers Part No.: SM15T18A
brand-logo
View all in TVS Diodes

Technical Document

Specifications

Brand

STMicroelectronics

Diode Configuration

Single

Product Type

TVS Diode

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

17.1V

Mount Type

Surface

Package Type

SMC

Maximum Reverse Stand-off Voltage Vwm

15.3V

Pin Count

2

Peak Pulse Power Dissipation Pppm

1500W

Clamping Voltage VC

32.5V

Minimum Operating Temperature

-55°C

Test Current It

1mA

Maximum Peak Pulse Current Ippm

308A

Number of Elements per Chip

1

Maximum Operating Temperature

150°C

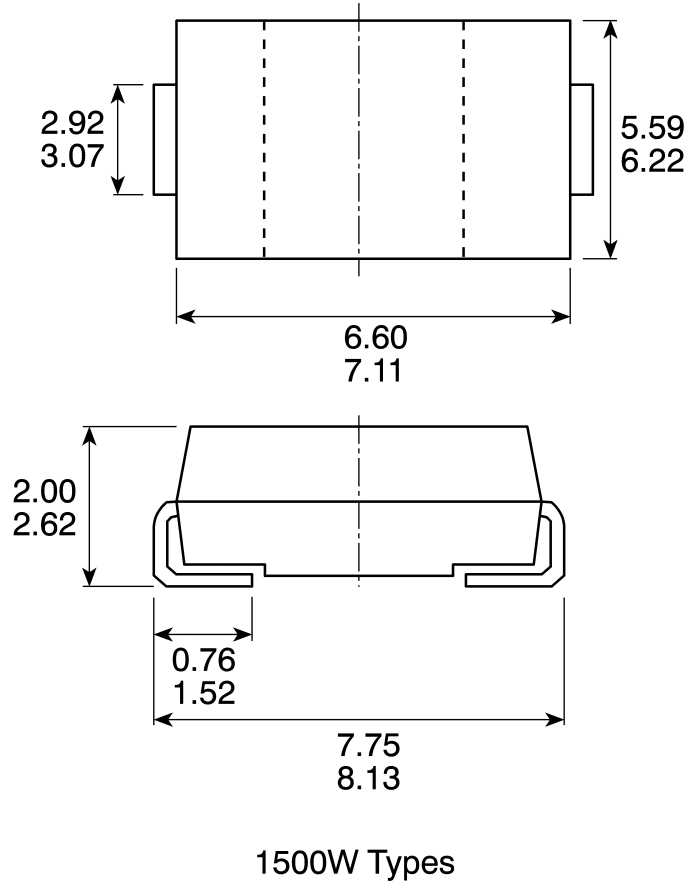

Width

6.25 mm

Height

2.45mm

Length

7.15mm

Standards/Approvals

UL Recognised

Series

SM15T TVS

Maximum Reverse Leakage Current

1μA

Automotive Standard

No

Country of Origin

China

Product details

Transil™ TVS SMT Unidirectional 1500W, SM15T Series, STMicroelectronics

Transient Voltage Suppressors, STMicroelectronics
