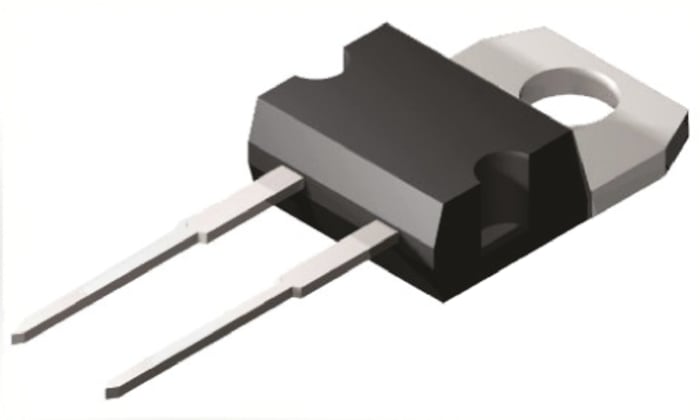

STMicroelectronics 600 V 14 A Diode Schottky 2-Pin TO-220 STTH8ST06DI
Technical Document
Specifications
Brand
STMicroelectronicsMount Type
Through Hole
Product Type
Diode
Package Type
TO-220
Maximum Continuous Forward Current If
14A
Peak Reverse Repetitive Voltage Vrrm
600V
Diode Configuration
Single
Series
STTH8
Rectifier Type
Schottky
Pin Count
2
Peak Reverse Current Ir
20μA
Maximum Forward Voltage Vf
3.1V
Minimum Operating Temperature
-40°C
Peak Non-Repetitive Forward Surge Current Ifsm
55A
Peak Reverse Recovery Time trr
26ns
Maximum Operating Temperature
175°C
Length
10.4mm
Height
15.9mm
Standards/Approvals
RoHS
Automotive Standard
No
Product details
Rectifier Diodes, 10A to 240A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 42.26
AED 8.453 Each (In a Pack of 5) (ex VAT)
AED 44.37
AED 8.876 Each (In a Pack of 5) (inc. VAT)
Standard
5
AED 42.26
AED 8.453 Each (In a Pack of 5) (ex VAT)
AED 44.37
AED 8.876 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 5 | AED 8.453 | AED 42.26 |
| 10 - 95 | AED 7.116 | AED 35.58 |
| 100 - 495 | AED 5.778 | AED 28.89 |
| 500+ | AED 5.618 | AED 28.09 |
