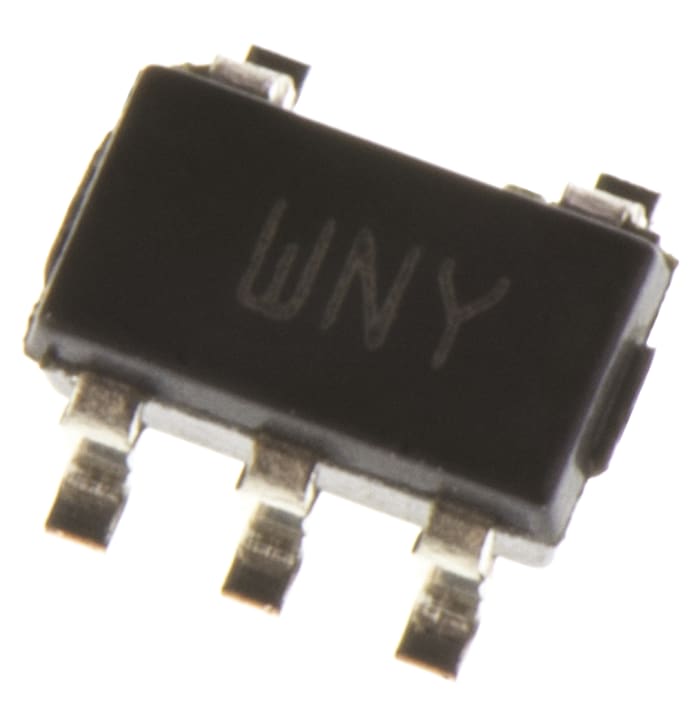

STMicroelectronics 5-Pin Watchdog Timer, SOT-23

RS Stock No.: 686-7509PBrand: STMicroelectronicsManufacturers Part No.: STWD100NYWY3F
brand-logo
View all in Watchdog Timers

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Watchdog Timer

Mount Type

Surface

Sub Type

Watchdog

Package Type

SOT-23

Number of Internal Timers

1

Pin Count

5

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

5.5V

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Width

1.6 mm

Length

2.9mm

Height

1.05mm

Standards/Approvals

No

Automotive Standard

No

Series

STWD100

Product details

Watchdog Timers, STMicroelectronics
