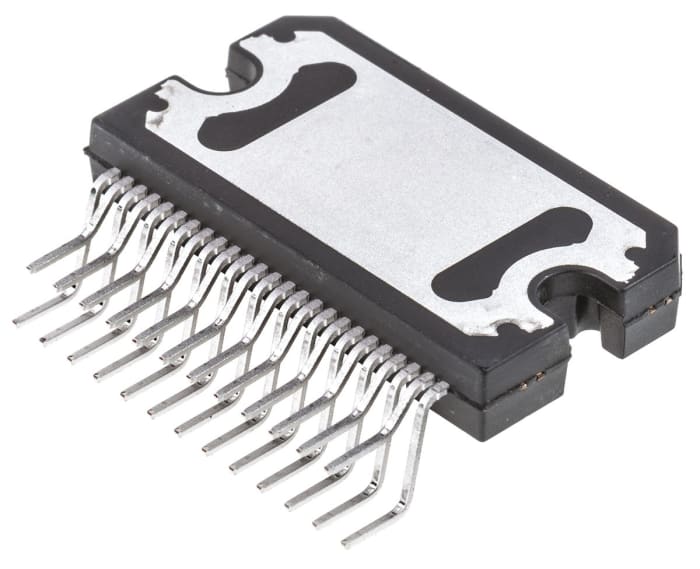

STMicroelectronics, 4-Channel Bridge Amplifier, 25-Pin, 30W FLEXIWATT TDA7850

RS Stock No.: 218-579Brand: STMicroelectronicsManufacturers Part No.: TDA7850
brand-logo
View all in Audio Amplifier ICs

Technical Document

Specifications

Brand

STMicroelectronics

Amplifier Type

Bridge Amplifier

Product Type

Audio Amplifier

Output Power

30W

Application

Speaker

Amplifier Class

Class A-B

Mount Type

Through Hole

Number of Channels

4

Package Type

FLEXIWATT

Pin Count

25

Minimum Operating Temperature

-55°C

Width

4.5 mm

Series

TDA7850

Height

15.7mm

Length

29.23mm

Standards/Approvals

No

Maximum Supply Voltage

18V

Maximum Operating Temperature

150°C

Automotive Standard

AEC-Q100

Product details

Automotive Audio Class-AB Power Amplifiers

ST’s Automotive Audio Class-AB Power Amplifiers provide a clean and powerful audio. These are available from a single channel device to a more powerful quad channel single chip design.

Robust designs with integrated protection against short circuits, ESD, load dumping, over-temperature
Ability to drive very low impedance speakers
Products compliant with new stop-start engine and hybrid engine standards
Optional I²C interface and diagnostics
Optional digital input
Optional augmented efficiency

Audio Amplifiers, STMicroelectronics
