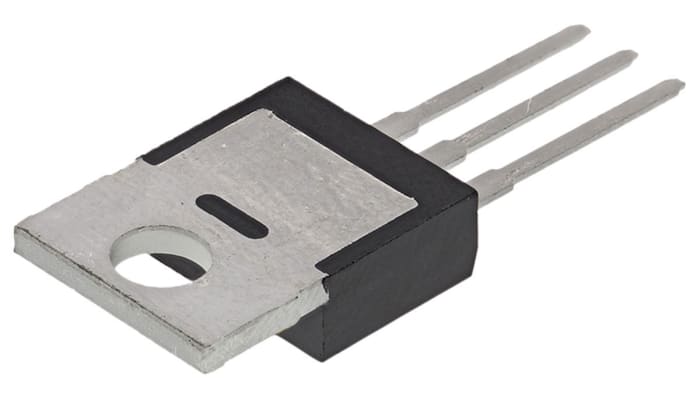

STMicroelectronics 1 Darlington Transistor NPN, 8 A 100 V HFE:200, 3-Pin TO-220

Name: STMicroelectronics 1 Darlington Transistor NPN, 8 A 100 V HFE:200, 3-Pin TO-220
Brand: STMicroelectronics
SKU: 4859610
Availability: LimitedAvailability

RS Stock No.: 485-9610Brand: STMicroelectronicsManufacturers Part No.: TIP102

View all in Darlington Pairs

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Darlington Transistor

Maximum Continuous Collector Current Ic

Maximum Collector Emitter Voltage Vceo

100V

Package Type

TO-220

Mount Type

Through Hole

Pin Count

Number of Elements per Chip

Minimum DC Current Gain hFE

200

Maximum Power Dissipation Pd

80W

Transistor Polarity

NPN

Maximum Emitter Base Voltage VEBO

Minimum Operating Temperature

-65°C

Maximum Collector Emitter Saturation Voltage VceSAT

Maximum Collector Base Voltage VCBO

100V

Maximum Operating Temperature

150°C

Height

9.15mm

Length

10.4mm

Standards/Approvals

Series

TIP102

Maximum Collector Cut-off Current

0.05mA

Automotive Standard

Country of Origin

China

Product Details

NPN Darlington Transistors, STMicroelectronics

Bipolar Transistors, STMicroelectronics

A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
